Abus D10+KD10MM Cylinder Set 50/40 + 50g/40 Brass Class 5 Anti-Picking EN 1303

Product Overview

The Abus D10+KD10MM 50/40 + 50g/40 cylinder set is designed for anti-burglary use in commercial and residential facilities, compatible with all mortise lock types. This set includes a double-sided cylinder and a knob cylinder, both operable with the same drilled key for improved user convenience. Certified to PN-EN 1303:2007, it achieves class 5 key security and class 2 resistance to attack, providing minimum durability of 50,000 cycles and corrosion resistance from -20°C to +80°C.

The standout feature of this set is its patented anti-picking system employing specially dimensioned pins and counter-pins, verified for exceptional effectiveness by security experts. This eliminates procurement risk related to lock manipulation and enhances security for sites with stringent access requirements. The set is well-suited for bulk installation in high-security office complexes, apartment buildings, and premium residential development projects.

Key Features

• Emergency function clutch ? allows cylinder operation even with a key inserted on the opposite side


• Patented anti-picking system ? special pins and counter-pins, proven to resist picking attempts


• Pre-snap technology ? safeguards against cylinder breakage during burglary attempts


• Corrosion resistance class C ? maintains full functionality in harsh climates from -20°C to +80°C


• 10-pin, 2-row keying ? offers 100,000 key combinations for advanced security


• Attack resistance class 2 ? withstands at least 5/10 minutes and 40 strikes per PN-EN 1303:2007


• Long lifespan ? durability tested to at least 50,000 operational cycles

Technical Specifications

• Cylinder Sizes: 50/40 mm (double-sided), 50g/40 mm (knob cylinder)


• Material: Brass (body), bronze and hardened steel (pins), stainless steel (springs), steel (cam)


• Certification: PN-EN 1303:2007


• Key Security Class: 5


• Attack Resistance Class: 2


• Corrosion Resistance: Class C


• Operating Temperature: -20°C to +80°C


• Durability: ?50,000 cycles


• Keying: 10 pins in 2 rows, 100,000 combinations


• Warranty: 5 years

Applications

Suitable for commercial office buildings, residential apartment complexes, hotels, and high-security institutional facilities. Designed primarily for use with mortise locks in entry doors, especially where high resistance to unauthorized access, picking, and physical attack is required. Meets requirements for projects requiring certified lock cylinders, emergency access capability, and bulk procurement for new construction or refurbishment.

Packaging & Shipping

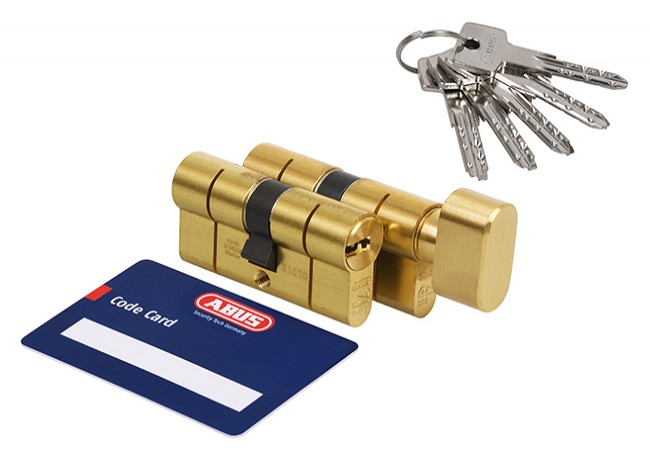

Each set is packed in a tamper-evident aesthetic box containing a double-sided cylinder, knob cylinder, five drilled keys, code card, mounting screw, and installation manual. Packaging ensures product integrity and full functionality. Bulk orders available for large projects.
