Abus D10+KD10MM Cylinder Set Brass 40/50 Emergency Function PN-EN 1303:2007 Class 5

Product Overview

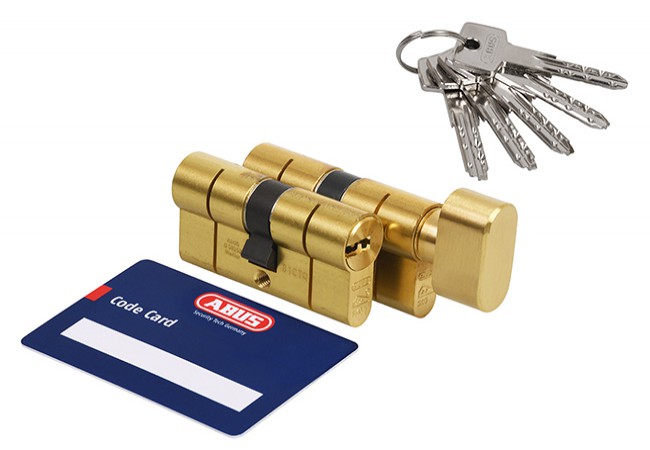

The Abus D10+KD10MM 40/50 + 40g/50 cylinder set provides high-security lock cylinders for mortise lock installations in commercial and residential buildings. Certified to PN-EN 1303:2007 with class 5 key security and class 2 attack resistance, it ensures reliable protection against physical and picking attempts. This set includes a double-cylinder and a knob-cylinder, both operated by the same key for enhanced everyday convenience.

Distinctive to this set is the emergency function, allowing the cylinder to be operated from one side even if a key is inserted in the opposite side. This feature eliminates lockout risks in multi-occupancy or facility environments, especially in offices, hotels, and apartment buildings. Bulk procurement is recommended for property managers or OEM projects requiring unified key access and high vandalism resistance.

Key Features

• Key security class 5 ? 10 tumblers in 2 rows with 100,000 combinations for high resistance to unauthorized opening


• Emergency function ? cylinder can be operated from both sides even if a key is inserted on the opposite side


• Pre-snap protection ? integrated mechanism prevents breakage during physical attacks


• Certified attack resistance ? class 2 & C under PN-EN 1303:2007 and KW/WQ-02 assures minimum 5/10 min resistance


• Corrosion resistance class C ? operable from -20°C to +80°C for exterior doors and exposed environments


• Anti-pick system ? patented pin and counter-pin arrangement verified by experts


• Long operating life ? minimum 50,000 cycles durability for intensive usage

Technical Specifications

• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Key Security Class: 5


• Number of Tumblers: 10 (2 rows)


• Key Combinations: 100,000


• Attack Resistance: Class 2 (minimum 5/10 min, 40 blows), Class C (KW/WQ-02)


• Corrosion Resistance: Class C (operating from -20°C to +80°C)


• Cylinder Material: Brass


• Pins & Counterpins Material: Bronze and hardened steel


• Springs: Stainless steel


• Guarantee: 5 years


• Operating Cycles: Minimum 50,000


• Included: Double-cylinder, knob-cylinder, 5 drilled keys, code card, fixing screw

Applications

Used in high-security mortise locks for apartment buildings, office complexes, hotels, and facility management scenarios. Supports unified key access in property portfolios, and is compatible with fire-rated and main entrance doors exposed to weather. Suitable for facility upgrades, OEM integration, and bulk installation projects demanding certified break-in resistance and anti-pick protection.

Packaging & Shipping

Each set is supplied in tamper-proof, sealed boxes containing both cylinders, five drilled keys, a code card, and a fixing screw. Standard export packaging protects items during shipment, ensuring full functionality upon delivery.
