Abus D10+KD10MM Euro Cylinder Set Keyed Alike Class 5 PN-EN 1303 Brass Emergency Function

Product Overview

The Komplet wkładek Abus D10+KD10MM 55/30 + 55g/30 is an anti-burglary euro-profile cylinder set designed for use with all mortise locks in residential and commercial settings requiring high resistance to physical attacks. Both the double cylinder and knob cylinder are keyed alike, granting convenience for multi-door access with a single key. Certified to PN-EN 1303:2007 and achieving class 5 for key security, this set withstands at least 50,000 cycles and features protection against snapping, drilling, and corrosion (class C, -20°C to +80°C operating range).

A standout feature is the emergency function, which allows the cylinder to be operated from one side even if a key remains inserted on the opposite side. This eliminates the risk of accidental lockout in critical applications, streamlining facility management and user safety. The product is particularly well-suited for bulk procurement in multi-tenant residential buildings, office complexes, or managed property portfolios requiring both convenience and certified security.

Key Features

• Certified anti-burglary protection ? PN-EN 1303:2007 1 5 0 0 0 C 5 2 C standard


• Emergency function ? access possible even if key left in cylinder from opposite side


• High key security ? 10 pin system with over 100,000 combinations, class 5


• Pre-snap feature ? breakage protection to prevent common snapping attacks


• Anti-pick system ? proprietary pin/tumbler mechanism deters manipulation


• Drill resistance ? uses bronze and hardened steel elements in the locking core


• Corrosion resistance ? rated class C, operational from -20°C to +80°C

Technical Specifications

• Cylinder Type: Double (55/30 mm) and knob (55g/30 mm) euro-profile


• Key Security Class: 5 (10 pins, 100,000 combinations)


• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Attack Resistance: Class 2 (min. 5/10 min, 40 blows), class C (KW/WQ-02)


• Cycle Durability: ? 50,000 cycles


• Corrosion Resistance: Class C


• Operating Temperature: -20°C to +80°C


• Body Material: Brass


• Pins/Counterpins: Bronze and hardened steel


• Cam: Steel


• Springs: Stainless steel


• Included Keys: 5 dimple keys


• Warranty: 5 years

Applications

Suited for new installations or retrofits in residential apartment blocks, office buildings, educational institutions, and managed commercial spaces where high-security, keyed-alike systems are desired. Compatible with all standard mortise locks, including doors requiring emergency/key override function. Recommended for use in facilities with strict security standards and frequent operator turnover.

Packaging & Shipping

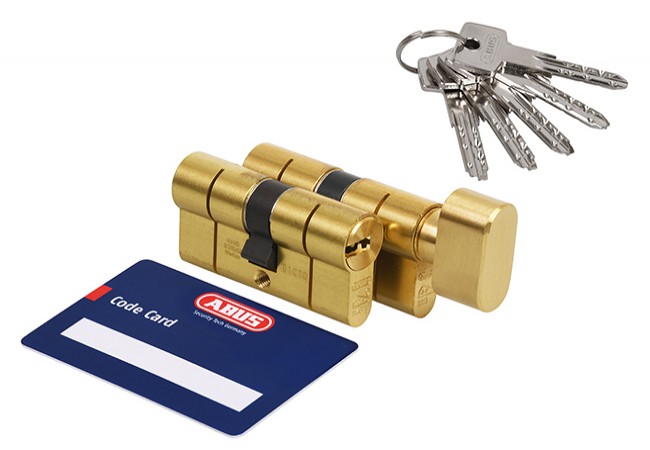

Each set is factory sealed in tamper-evident retail packaging and includes one double euro-profile cylinder, one knob cylinder, five dimple keys, a code card, fixing screw, and installation instruction. Palletized bulk shipping is available for large orders upon request.
