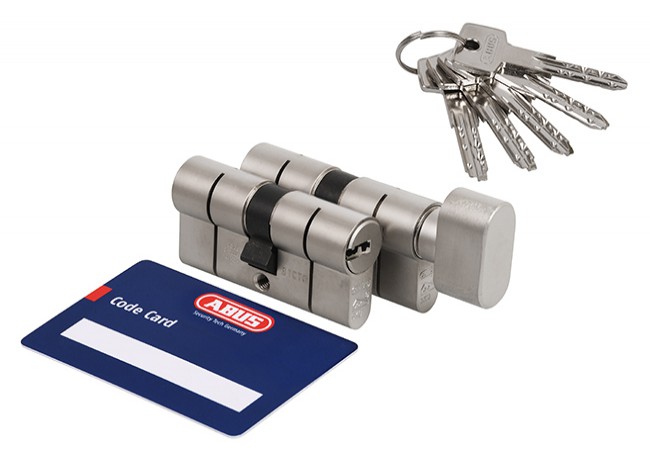

Abus D10+KD10NP Cylinder Set Double & Knob Pearl Nickel EN 1303 Class 5 Emergency Function

Product Overview

The Abus D10+KD10NP cylinder set, finished in pearl nickel, provides certified anti-burglary protection for mortise locks in commercial and residential door installations. The set includes a double-sided cylinder and a knob cylinder, both operable with the same drilled key, and is certified to PN-EN 1303:2007 with class 5 key security and class 2 attack resistance. Designed for environments requiring high durability, it offers a minimum lifespan of 50,000 cycles and corrosion resistance up to class C (-20°C to +80°C).

Pre-snap protection, a patented anti-picking system, and the emergency function (turning even with a key inserted on the other side) differentiate this set from standard cylinders. These features significantly reduce security risks and ensure compliance with demanding security standards, making this product especially suitable for large commercial complexes, institutional buyers, and facility managers seeking high-assurance lock solutions for multiple access points.

Key Features

• 101,000 key code combinations ? system with 10 pins in 2 rows, class 5 security per PN-EN 1303


• Pre-snap break protection ? integrated defense mechanism prevents cylinder breakage in forced entry attempts


• Patented anti-picking system ? special pins and counterpins fitted for enhanced resistance against manipulation


• Double & knob cylinders ? both operated by the same drilled key for user convenience and access control


• Attack resistance class 2 ? withstands minimum 5/10 minutes or 40 strikes, meets KW/WQ-02 class C requirements


• Corrosion resistance class C ? certified for operation from -20°C to +80°C in harsh environments


• Emergency function ? ability to turn from one side even if key is inserted from opposite side

Technical Specifications

• Cylinder Type: Double-sided (30/45), Knob cylinder (45g/30)


• Finish: Pearl Nickel


• Key Security Class: 5 (PN-EN 1303:2007)


• Key Combinations: 101,000


• Durability: Minimum 50,000 cycles


• Attack Resistance: Class 2 (PN-EN 1303), Class C (KW/WQ-02)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Material: Brass body; bronze and hardened steel pins and counterpins; steel cam; stainless steel springs


• Included Keys: 5 drilled keys


• Certification: PN-EN 1303:2007


• Warranty: 5 years

Applications

Used for securing commercial, institutional, and residential buildings, especially where anti-burglary performance and emergency access are required. Compatible with mortise lock installations in office complexes, apartment buildings, retail outlets, and public facilities. Appropriate for projects demanding certified key security, attack resistance, and robust corrosion protection for external and internal doors.

Packaging & Shipping

Each set is packed in a factory-sealed box containing the double-sided cylinder, knob cylinder, 5 drilled keys, code card, mounting screw, and installation manual. Tamper-evident packaging ensures product integrity; returns on opened boxes are not accepted.
