Abus D10+KD10NP Cylinder Set Double & Knob Pearl Nickel EN 1303 Emergency Clutch

Product Overview

The Abus D10+KD10NP 30/40 + 30g/40 cylinder set offers high-security, anti-burglary protection, featuring both a double-sided and a knob cylinder, each operated by the same key. Designed for use in all mortise lock systems, it is certified to PN-EN 1303:2007 with class 5 key security and class 2 attack resistance, supporting stable operation in demanding environments such as residential and commercial buildings. Durability is rated for a minimum of 50,000 cycles, and corrosion resistance is class C, functional from -20°C to +80°C.

A standout feature is the emergency function clutch, allowing users to operate the cylinder even if a key is left inserted on the opposite side?a critical requirement for facility managers and multi-tenant properties where access continuity must be ensured. The set's unified keying streamlines management, making it ideal for bulk procurement in new apartment developments and high-traffic commercial installations.

Key Features

• Emergency clutch function ? enables turning even when a key is inserted on the opposite side


• Certified PN-EN 1303:2007 ? meets class 5 key security and class 2 attack resistance


• Pre-snap protection ? prevents cylinder breakage during forced entry attempts


• Antipicking system ? patented pin and tumbler arrangement discourages manipulation


• Corrosion resistance class C ? fully operational from -20°C to +80°C


• Dual-row 10-pin system ? provides over 100,000 unique key combinations


• Durability ? rated for a minimum of 50,000 opening/closing cycles

Technical Specifications

• Cylinder Type: Double-sided and knob cylinder


• Material: Brass body, bronze and hardened steel pins, stainless steel springs


• Key Security Class: 5 (10 pins, 100,000 combinations)


• Certification: PN-EN 1303:2007


• Attack Resistance: Class 2 (min. 5/10 min, 40 impacts)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Durability: ?50,000 cycles


• Security Feature: Emergency clutch function


• Antipicking System: Patented


• Key Quantity: 5 drilled keys


• Finish: Pearl nickel


• Warranty: 5 years

Applications

Used in residential apartment doors, commercial office entrances, and institutional facilities requiring high security and unified key access. Suitable for installations involving mortise locks, bulk orders for new developments, retrofitting in existing properties, and fire exit doors needing emergency cylinder operation. Compatible with door hardware requiring EN 1303 certification and heightened attack and corrosion resistance.

Packaging & Shipping

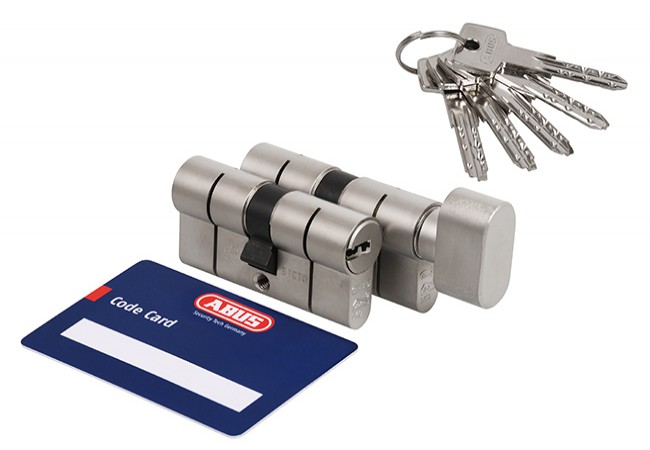

Each set is packed in a sealed box ensuring tamper-proof delivery. Package includes one double-sided cylinder, one knob cylinder, 5 drilled keys, a code card, mounting screw, and installation instructions. Bulk options available for project procurement.
