Abus D10+KD10NP Cylinder Set Double-Sided and Knob Emergency Function Class 5.2 Nickel Pearl

Product Overview

The Komplet wkładek Abus D10+KD10NP set combines an anti-burglary double-sided cylinder and a knob cylinder, both operable with the same key for enhanced convenience. Designed for use with all mortise locks, it is certified to PN-EN 1303:2007 and achieves durability of at least 50,000 cycles, plus corrosion resistance in conditions from -20°C to +80°C. The system includes five drilled keys and is assigned security class 5.2. Robust construction and a patented anti-picking mechanism ensure maximum protection against break-in attempts.

The standout feature of this set is the emergency function: the cylinder can be operated from either side even if a key remains inserted, which is crucial for safety and facility access risk management. This eliminates the risk of blocked entry during emergencies, making the set particularly suited for bulk procurement by commercial property managers, hotel operators, and multi-residential building projects where access reliability is a priority.

Key Features

• Emergency function ? safe clutch allows operation from both sides even if a key is inserted


• Anti-snap pre-snap protection ? resists destructive break-in methods targeting the cylinder


• Patented anti-pick system ? special pins and counter-pins block manipulation attempts


• Security class 5, 10 pins, 100,000 combinations ? meets high security standards for key control


• Class 2 attack resistance ? survives min. 5 minutes, 40 strikes per KW/WQ-02


• Corrosion resistance class C ? reliable operation from -20°C to +80°C


• Brass cylinder body ? enhanced durability; bronze and hardened steel pins increase lifespan

Technical Specifications

• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Durability: ?50,000 cycles


• Key Security: Class 5; 10 pins; 100,000 combinations


• Attack Resistance: Class 2 per KW/WQ-02


• Corrosion Resistance: Class C (-20°C to +80°C)


• Material: Brass cylinder body, bronze and hardened steel pins, steel cam, stainless springs


• Keys Included: 5 drilled keys

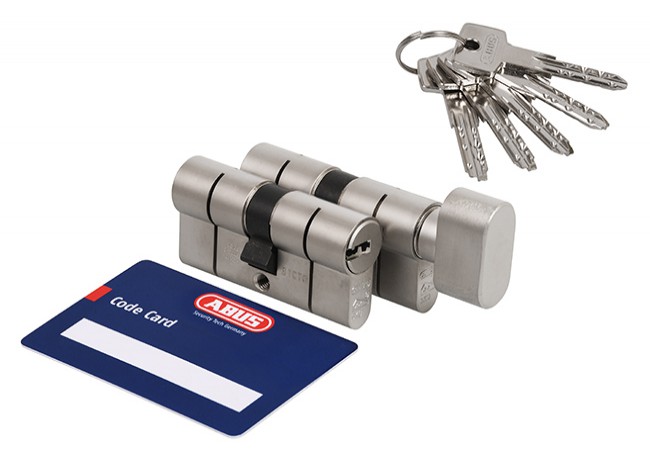

• Included: Double-sided cylinder, knob cylinder, keys, code card, fixing screw

Applications

Ideal for residential and commercial doors requiring high-security mortise lock cylinders?especially multi-family housing, hotels, office buildings, and institutional facilities. Suitable for fire-rated and access-controlled doors, as well as OEM projects needing certified cylinder sets with emergency operation. Meets requirements for environments needing durable, corrosion-resistant and attack-resistant locking solutions.

Packaging & Shipping

Each set is packaged in a sealed box ensuring tamper-proof delivery, including two cylinders, five drilled keys, a code card, fixing screw, and installation instructions. Standard export packaging. Bulk orders available with protective palletization.
