Abus D10+KD10NP Cylinder Set Emergency Function Pearl Nickel EN 1303 Class 5 Keyed Alike

Product Overview

The Abus D10+KD10NP cylinder set in pearl nickel finish is a high-security solution for use with mortise locks in residential, commercial, and institutional environments. Certified to PN-EN 1303:2007 with class 5 key security and class 2 attack resistance, this set comprises a double-sided cylinder and a thumbturn cylinder, both operable with the same key. Designed for doors exposed to demanding conditions, it withstands corrosion from -20°C to +80°C and provides a minimum durability of 50,000 cycles.

A distinguishing feature is the built-in emergency function: the cylinder can be operated from one side even if a key remains inserted from the opposite side, eliminating lockout risk during shift changes or emergency access scenarios. This makes the set ideally suited for multi-occupancy buildings, care facilities, hotels, and office complexes requiring fail-safe access and high security standards during procurement.

Key Features

• Emergency function clutch ? allows operation from either side even with a key inserted, prevents lockouts


• 10-pin system ? 100,000 key combinations for advanced key security (Class 5)


• Pre-snap protection ? patented feature resists cylinder breaking on forced entry


• Anti-drill mechanism ? bronze and hardened steel pins defend against drilling attacks


• Attack resistance ? Class 2 per PN-EN 1303: minimum 5/10 minutes, 40 hammer blows


• Corrosion resistance Class C ? reliable operation from -20°C to +80°C


• Thumbturn cylinder ? convenient access without key on one side, enhances user comfort

Technical Specifications

• Cylinder Length: 40/50 mm double-sided, 40g/50 mm thumbturn


• Material: Brass body, bronze and hardened steel pins, stainless springs


• Finish: Pearl nickel


• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Key Security Class: 5 (10 pins, 100,000 combinations)


• Attack Resistance Class: 2


• Corrosion Resistance: Class C (-20°C to +80°C)


• Durability: Minimum 50,000 cycles


• Included Keys: 5 drilled keys


• Warranty: 5 years

Applications

Appropriate for doors in residential complexes, commercial offices, hotels, hospitals, and care facilities?especially where mortise locks are used and emergency access is essential. Meets requirements for certified high-security installations, bulk procurement for project developers, and access control upgrades in multi-tenant or institutional properties.

Packaging & Shipping

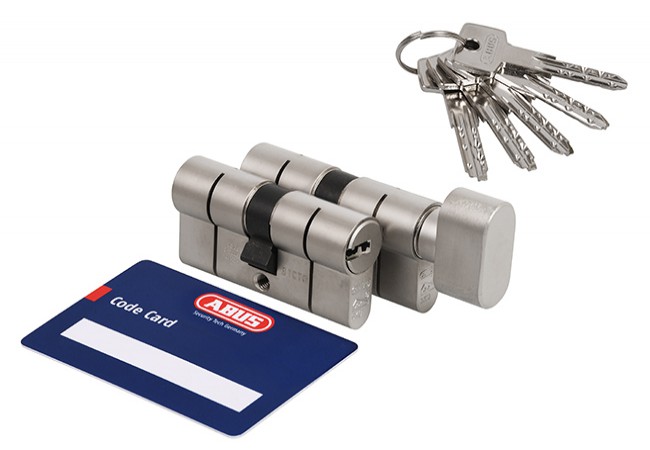

Factory-sealed packaging includes two cylinders (double-sided and thumbturn), five drilled keys, a code card, fixing screw, and installation instructions. Tamper-evident boxes ensure product integrity for bulk shipping and compliance-based procurement.
