Abus D10+KD10NP Euro Cylinder Lock Set Emergency Function Pearl Nickel EN 1303 Class 2/5

Product Overview

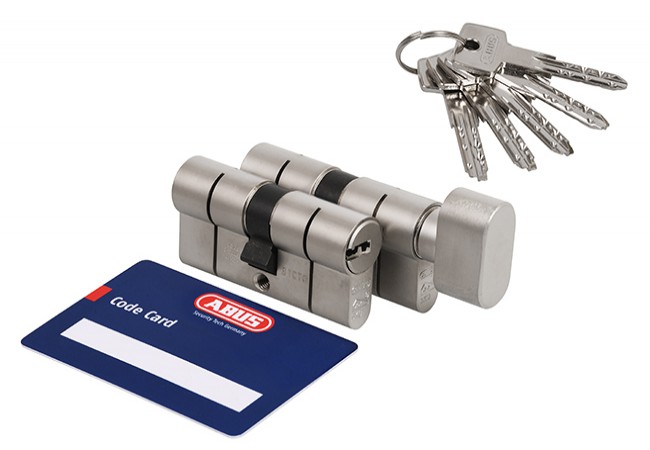

The Komplet wkładek Abus D10+KD10NP 30/45 + 30g/45 set consists of high-security double and knob euro-cylinder inserts, designed for use with all mortise locks in commercial, residential, and institutional environments. Certified to PN-EN 1303:2007 with attack resistance class 2 (KW/WQ-02 class C), key protection class 5, and corrosion resistance class C, these cylinders provide advanced physical and functional protection against burglary, picking, and drilling?essential for projects with strict security requirements.

The defining feature of this set is the emergency function (safe clutch): the cylinder remains operable from the opposite side even if a key is left inside, preventing accidental lockout and facilitating swift access during emergencies. This function, combined with both cylinders keyed alike, accelerates key management and reduces operational interruptions. The set is particularly suited for bulk procurement in multi-family housing, offices, and facilities where master-key convenience and stringent security are required.

Key Features

• Certified to PN-EN 1303:2007 ? compliance with European cylinder standards ensures acceptance in regulated projects


• Attack resistance class 2 / class C ? resists forced entry for at least 5-10 minutes or 40 blows, per KW/WQ-02


• Key security class 5 ? 10-pin, dual-row system offers over 100,000 key combinations


• Pre-snap break protection ? cylinder constructed to resist snapping attempts during burglary


• Special anti-picking system ? patent-protected pins and counters ensure high picking resistance


• Emergency function (safe clutch) ? cylinder operable from one side with a key left on the other side


• Corrosion resistance class C ? functionally reliable from -20°C to +80°C, suitable for demanding climates

Technical Specifications

• Cylinder Type: Double and knob (euro profile)


• Cylinder Size: 30/45 + 30g/45 mm


• Durability: Minimum 50,000 cycles


• Key Combinations: >100,000


• Pin Rows: 2


• Number of Pins: 10


• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Attack Resistance: Class 2 (min. 5/10 min, 40 blows)


• Key Security: Class 5


• Corrosion Resistance: Class C (-20°C to +80°C)


• Body Material: Brass


• Pins/Pin Material: Bronze and hardened steel


• Driver: Steel


• Springs: Stainless steel


• Finish: Pearl nickel


• Warranty: 5 years

Applications

Intended for high-security access control in apartment blocks, commercial properties, office buildings, hospitals, schools and public sector facilities. Approved for use on all mortise locks, suitable for entrances where emergency opening, high break-in resistance, and key duplication control are essential. Supports master-key applications and is recommended for projects requiring compliance with PN-EN 1303 and high class C attack/corrosion resistance standards.

Packaging & Shipping

Each set is delivered in a sealed, tamper-evident box including a double and a knob cylinder, 5 dimple keys keyed alike, a coded card, mounting screw, and installation instructions. Standard export packaging ensures product integrity during shipment.
