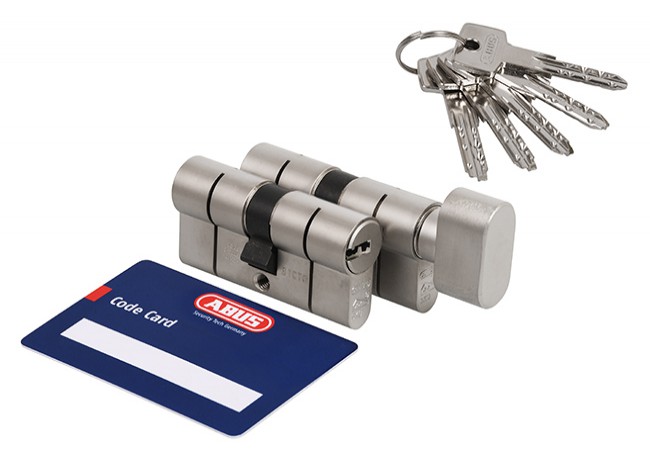

Abus D10+KD10NP Lock Cylinder Set 30/40 + 40g/30 Keyed Alike Pearl Nickel EN 1303

Product Overview

The Komplet wkładek Abus D10+KD10NP 30/40 + 40g/30 is a high-security lock cylinder set featuring emergency function coupling and certified to PN-EN 1303:2007 for anti-burglary protection. It includes both double-sided cylinders and knob cylinders, all operable with a single key, making it well suited for professional and residential settings requiring coordinated access control. The nickel pearl finish and robust brass body ensure longevity even in demanding environments, with corrosion resistance up to -20°C to +80°C.

A distinguishing feature of this set is its patented anti-picking system utilizing precisely matched pins and driver pins confirmed for effectiveness by security experts. This eliminates the procurement risk of substandard protection against advanced lock manipulation, addressing project requirements for enhanced physical security. Recommended for security-critical commercial properties, office complexes, and institutional installations where certified and tamper-resistant access solutions are mandatory.

Key Features

• Patented anti-picking system ? matched pins and drivers provide exceptional resistance to picking attempts


• Emergency function coupling ? lock can be operated from either side even if a key is inserted in the opposite side


• Pre-snap protection ? built-in mechanism prevents breakage during attempted forced entry


• Key security class 5 ? 10 pin tumbler system with up to 100,000 unique combinations


• Corrosion resistance class C ? operates reliably between -20°C and +80°C for outdoor or humid environments


• Certified to PN-EN 1303:2007 ? compliance with European security and durability standards


• Durability ? rated for at least 50,000 operating cycles ensuring long service life

Technical Specifications

• Standard: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Pin Tumblers: 10 (in 2 rows)


• Key Combinations: 100,000


• Operating Temperature: -20°C to +80°C


• Corrosion Resistance Class: C (highest)


• Attack Resistance Class: 2 / Class C per KW/WQ-02


• Durability: Min. 50,000 cycles


• Material, Body: Brass


• Material, Pins/Drivers: Bronze and hardened steel


• Material, Actuator: Steel


• Material, Springs: Stainless steel


• Finish: Pearl nickel


• Warranty: 5 years

Applications

Designed for use in commercial buildings, residential complexes, office spaces, and institutional facilities needing certified anti-burglary lock cylinders. Ideal for installation in mortise locks on security gates, fire-rated doors, and access-controlled corridors. Suitable for bulk procurement in facility management projects, as well as for OEM system integration where access control with certified security and tamper resistance is required.

Packaging & Shipping

Each set is supplied in tamper-evident packaging containing a double-sided cylinder, knob cylinder, 5 drilled keys, key card, mounting screw, and installation manual. Secure, sealed box ensures product authenticity and full functionality.
