Abus D10+KD10NP Security Cylinder Set 30/50 + 50g/30 Nickel Pearl EN 1303 Class 2

Product Overview

Abus D10+KD10NP 30/50 + 50g/30 nickel pearl is a security cylinder set designed for use with all mortise locks in residential and commercial buildings. Featuring both a double-sided cylinder and a knob cylinder operated by the same key, the set meets PN-EN 1303:2007 certification requirements, guaranteeing tested burglary and corrosion resistance. Key materials include brass body components, bronze and hardened steel pins, and stainless spring elements, ensuring reliable operation in demanding environments.

The emergency function?allowing the cylinder to be operated even if a key is left inserted on the opposite side?makes this set notably safer and more convenient for facility managers and multi-unit property owners. This feature reduces lockout risks and compliance concerns in premises requiring high safety standards, such as residential blocks, hotels, and offices. The set is particularly well-suited for bulk procurement and security upgrades in large-scale commercial or institutional applications.

Key Features

• Emergency function ? cylinder can be operated from both sides regardless of key position


• PN-EN 1303:2007 certified ? verified for security, durability, and corrosion resistance


• Pre-snap protection ? break-prevention mechanism increases resistance to forced entry


• 10-pin key system ? up to 100,000 possible key combinations for enhanced security


• Anti-picking system ? patented pin and driver shapes against manipulation attacks


• Attack resistance class 2 ? withstands at least 5/10 minutes, 40 strikes per certification


• Corrosion resistance class C ? works reliably from -20°C to +80°C

Technical Specifications

• Cylinder Size: 30/50 mm double-sided, 50g/30 mm knob cylinder


• Material: Brass body, bronze and hardened steel pins, stainless springs


• Pins: 10 pins in 2 rows


• Durability: Minimum 50,000 cycles


• Key: 5 drilled keys included


• Certification: PN-EN 1303:2007


• Attack Resistance: Class 2, Class C (KW/WQ-02)


• Corrosion Resistance: Class C (?20°C to +80°C)


• Guarantee: 5 years

Applications

Designed for use in multi-family residential buildings, hotels, office blocks, and institutional facilities requiring high burglary resistance and operational safety. Compatible with mortise locks and suited for controlled access zones, property management, and security upgrades. Emergency function and high attack resistance meet requirements for environments where lockouts and security breaches must be prevented.

Packaging & Shipping

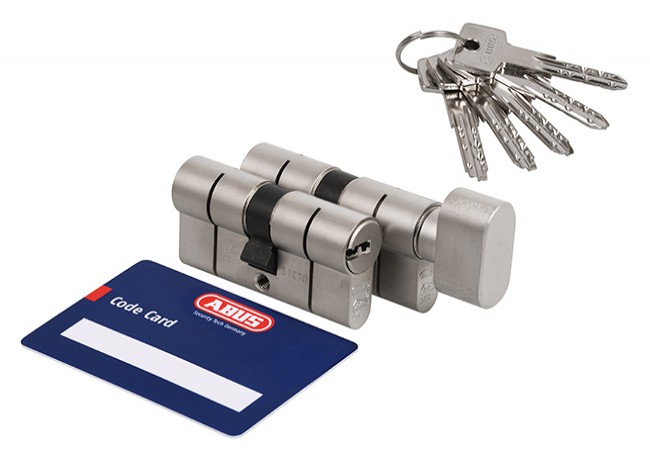

Each set is shipped in a tamper-evident box containing the double-sided cylinder, knob cylinder, 5 drilled keys, a code card, mounting screw, and user instructions. Packaging ensures product integrity; bulk and OEM shipments use protected cartons.
