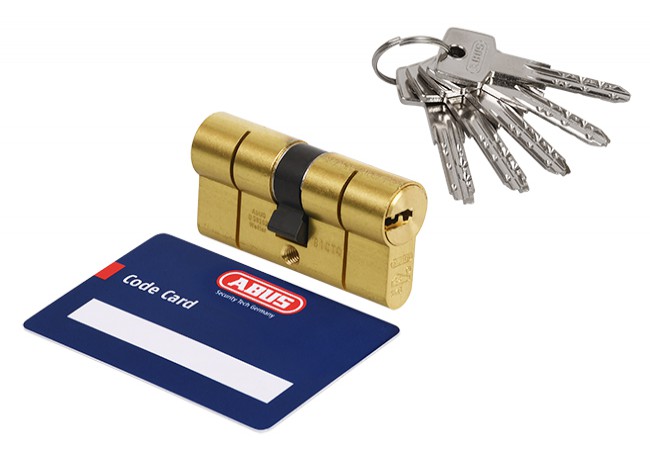

Abus D10MM 30/30 Cylinder Lock Brass 10-Pin Secure Clutch EN 1303 Class C 5 Keys

Product Overview

The Abus D10MM 30/30 brass cylinder lock is designed for high-security applications in commercial and residential environments, meeting the PN-EN 1303:2007 certification. Its corrosion resistance class C ensures dependable operation in harsh conditions, with a temperature range from -20°C to +80°C and durability rated for at least 50,000 cycles. The lock features anti-burglary mechanisms suitable for entrance doors frequently exposed to security threats.

What sets this model apart is its secure clutch mechanism, allowing the cylinder to be operated from one side even if a key is inserted in the other?eliminating the risk of lockouts and supporting emergency or access control scenarios. Its 10-pin, double-row system with advanced antypicking solutions makes it ideal for bulk procurement by facility managers or OEM door manufacturers seeking high key security and proven anti-manipulation performance.

Key Features

• 10-pin double-row system ? offers 100,000 key combinations for elevated security


• Secure clutch mechanism ? emergency function allows operation with key inserted from opposite side


• Pre-snap protection ? resists cylinder break-in attempts


• Corrosion resistance class C ? operational from -20°C to +80°C, suited for outdoor installations


• Anti-drill and anti-picking ? hardened pins and patented Abus system for advanced resistance


• Durability ? certified minimum 50,000 cycles for long-term use


• Included set ? 5 drilled keys, code card, fixing screw, guarantee card

Technical Specifications

• Cylinder Length: 30/30 mm


• Material: Brass (body), bronze and hardened steel (pins), stainless springs


• Key Combinations: 100,000


• Pin System: 10 pins in 2 rows


• Clutch Function: Emergency (secure clutch)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Certification: PN-EN 1303:2007


• Attack Resistance: Class 2 (min. 5/10 minutes, 40 impacts)


• Key Security: Class 5


• Drill Protection: Yes


• Cycle Durability: ? 50,000 cycles

Applications

Suited for commercial buildings, residential complexes, and institutional entrances requiring high-security locking cylinders. Compatible with mortise locks for main entry doors, offices, apartments, or storage premises. The emergency clutch function caters to access control systems and facilities where lockout prevention is critical. Recommended for bulk installation projects and OEM applications specifying certified security hardware.

Packaging & Shipping

Each cylinder is individually packaged in a sealed box for tamper evidence. The package includes 5 drilled keys, code card, fixing screw, and manufacturer warranty documentation. Bulk orders are available with secure export packaging.
