Abus D10MM 30/35 Euro Cylinder Brass EN 1303 Class 5 with Emergency Coupling

Product Overview

The Abus D10MM 30/35 Euro profile cylinder is a high-security cylinder lock insert for mortise locks, typically specified for use in commercial and residential entrances requiring a higher class of burglary resistance. Certified to PN-EN 1303:2007, resistance class 2, and key security class 5, it features robust brass construction, repeated key security assurance, and a corrosion resistance rating to class C, tolerating operation between -20°C and +80°C. B2B buyers value its independent security certification and five-year manufacturer?s warranty, ensuring long lifecycle operation.

A distinctive feature of this SKU is the emergency coupling (safety clutch), allowing the cylinder to be unlocked from one side even if a key remains inserted on the other, which eliminates operational lock-out risk in high-traffic or multi-user doors. This makes it particularly suited for apartment buildings, office complexes, and managed properties where user error or emergency access could otherwise compromise security or convenience.

Key Features

• Emergency coupling function ? cylinder can be operated from both sides even if a key is inserted from one side


• EN 1303:2007 certified ? meets burglary resistance class 2, key security class 5 (10 pins and 100,000 combinations)


• Pre-snap technology ? dedicated anti-break security against destructive attacks


• Antidrill protection ? components include hardened steel and bronze for drill resistance


• Corrosion resistance class C ? operational range from -20°C to +80°C for outdoor and harsh environments


• 50,000 cycle durability ? designed for long service life in commercial settings


• Supplied with 5 dimple keys ? master keying and keyed alike options available on request

Technical Specifications

• Length: 30/35 mm (outside/inside)


• Material: Brass body, bronze and hardened steel pins


• Security Standard: PN-EN 1303:2007


• Burglary Resistance: Class 2


• Key Security: Class 5 (10 pins, 100,000 combinations)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Keying: 5 dimple keys included


• Operation: Emergency coupling (function)


• Cycle Durability: ? 50,000 cycles


• Warranty: 5 years

Applications

Designed for use with mortise locks in residential and commercial doors, including apartment blocks, office entrances, and property management settings requiring emergency access. Complies with advanced security requirements for burglary and key manipulation resistance; suitable for exterior and interior doors, especially where anti-pick, anti-drill, and anti-break protection is required. Master keying and keyed alike systems possible for facility management.

Packaging & Shipping

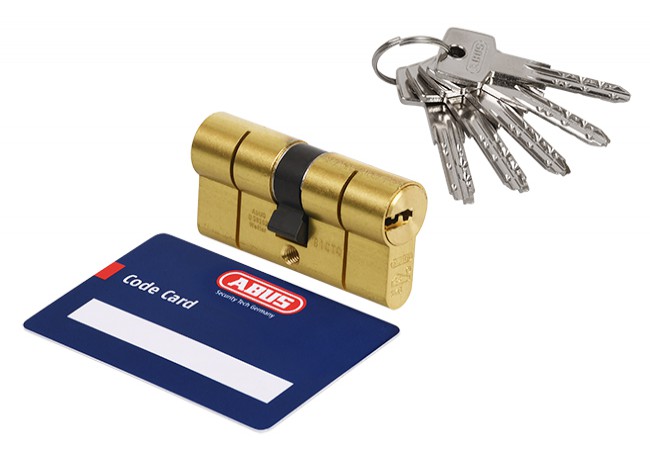

Each cylinder is securely sealed in an individual, tamper-evident box. Included in the package are five dimple keys, a code card for duplication, a mounting screw, and an installation manual. Bulk orders are available with units individually boxed and delivered in master cartons.
