Abus D10MM 30/40 Euro Cylinder Brass Pre-Snap Breakage Protection EN 1303 Class 2

Product Overview

Abus D10MM 30/40 mm brass euro cylinder serves as a high-security anti-burglary solution for use with standard mortise locks in commercial and residential settings. Certified to PN-EN 1303:2007 (rating 1 5 0 0 0 C 5 2 C), it withstands a minimum of 50,000 operating cycles and delivers top-grade corrosion resistance from -20°C to +80°C. The included emergency function enables operation even if a key is inserted from the opposite side, enhancing safety and convenience.

The pre-snap feature, which protects the cylinder against breakage, distinguishes this SKU and addresses a critical vulnerability in many competitive cylinders. This design minimizes risk and liability for locksmiths and facility managers specifying hardware for doors exposed to forced entry or high abuse. Particularly suited for bulk procurement in security-focused building projects, such as hotels, apartments, and institutional facilities.

Key Features

• Pre-snap protection ? integrated anti-breakage mechanism prevents snapping during forced entry attempts


• 10 tumbler pins in 2 rows ? delivers up to 100,000 combinations for heightened key security


• Security clutch/emergency function ? cylinder can operate if a key is left in the opposite side


• Anti-picking system ? patented Abus pins and counter-pins resist manipulation and picking


• Heavy-duty brass body ? core components utilize bronze and hardened steel for durability


• Corrosion resistance class C ? operational reliability from -20°C to +80°C in harsh environments


• Resistance class 2 ? certified to withstand minimum 5/10 minutes forced attack and 40 strikes per PN-EN 1303 standards

Technical Specifications

• Cylinder Length: 30/40 mm


• Material: Brass body, bronze and hardened steel pins, stainless springs


• Key Security: Class 5 (10 pins, 100,000 combinations)


• Anti-picking: Patented system by Abus


• Security Clutch: Included


• Operating Cycles: Minimum 50,000


• Corrosion Resistance: Class C (-20°C to +80°C)


• Breakage Protection: Pre-snap feature


• Attack Resistance: Class 2 (min. 5/10 min., 40 strikes)


• Certification: PN-EN 1303:2007 (1 5 0 0 0 C 5 2 C)


• Finish: Brass


• Included Keys: 5 drilled keys

Applications

Widely used in commercial office buildings, hotels, apartments, and institutional facilities requiring certified anti-burglary protection. Compatible with mortise lock installations for entrance doors, security doors, and fire doors where high resistance to forced entry, picking, and corrosion is required. Meets specification demands for bulk security hardware procurement in new builds and facility upgrades.

Packaging & Shipping

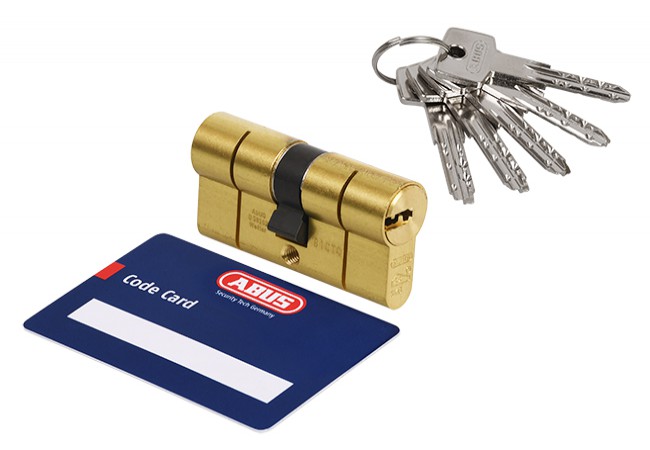

Each cylinder is packed in a sealed box to ensure tamper evidence and functionality. Package includes 5 drilled keys, a code card, fixing screw, and installation instructions. Bulk orders available for project procurement.
