Abus D10MM 30/50 Euro Cylinder PN-EN 1303:2007 Brass Class 5 Emergency Function

Product Overview

The Abus D10MM 30/50 is a high-security euro-profile cylinder designed for use with all mortise lock types in residential and commercial properties. Certified to PN-EN 1303:2007 and rated at class 5 key security and class 2 attack resistance, it withstands mechanical and corrosion stresses in demanding environments from -20°C to +80°C. Its anti-snap function, hardened anti-drill construction, and emergency coupling (key operation from both sides) make it suitable for buildings requiring advanced access control and tenant safety.

One feature that sets this model apart is its patent-protected anti-picking system, achieved through precision-fitted pins and drivers of bronze and hardened steel. This substantially reduces the risk of unauthorized opening and eliminates a common procurement risk for facility managers and locksmiths seeking compliance with modern break-in resistance standards. The D10MM is particularly suited for bulk procurement in commercial property retrofits, multi-tenant buildings, or projects requiring certified emergency unlocking functionality.

Key Features

• PN-EN 1303:2007 certified ? tested for burglary resistance, attack, and corrosion class C (highest)


• Pre-snap protection ? break-zone design helps prevent cylinder snapping during break-in attempts


• 10-pin system, two rows ? allows for over 100,000 key code combinations, security class 5


• Hardened anti-drill pins ? core and housing use bronze and steel elements for mechanical defense


• Emergency function coupling ? key can operate from both sides simultaneously for user safety


• Anti-picking system ? patent-protected pins and drivers defeat common manipulation techniques


• High cycle durability ? tested for at least 50,000 opening and closing cycles

Technical Specifications

• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Key Security Class: 5


• Attack Resistance Class: 2


• Corrosion Resistance: Class C (-20°C to +80°C)


• Durability: ?50,000 cycles


• Cylinder Length: 30/50 mm


• Number of Pins: 10 (2 rows)


• Material (Body): Brass


• Material (Pins/Drivers): Bronze, hardened steel


• Emergency Function: Yes (double-sided operation)


• Pre-snap Protection: Yes


• Number of Keys Supplied: 5

Applications

The Abus D10MM 30/50 cylinder is used in residential and commercial doors equipped with standard mortise locks where high levels of burglary resistance, emergency unlocking, and key management control are required. Recommended for multi-family housing, office buildings, hotels, managed properties, and retrofits conforming to European security standards. Suitable for both interior and exterior doors exposed to variable weather or tampering risk.

Packaging & Shipping

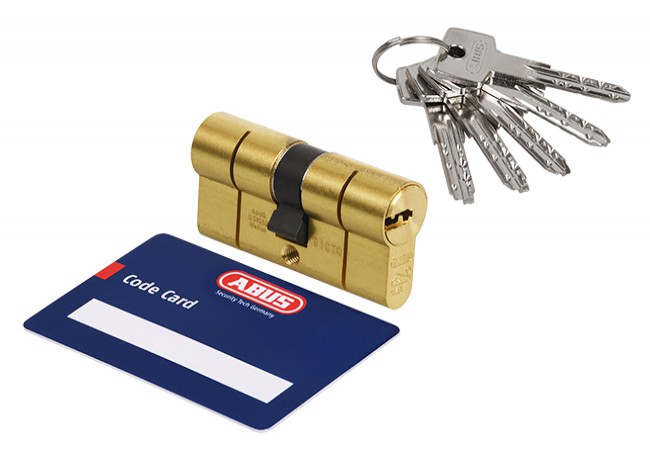

Each cylinder is individually boxed in a tamper-evident, sealed package containing 5 dimple keys, a code card, fixing screw, and installation manual. Bulk packaging for larger orders available on request.
