Abus D10MM 35/50 Euro Cylinder Brass PN-EN 1303:2007 Class 5.2 Anti-Pick System

Product Overview

The Abus D10MM 35/50 double-sided euro profile cylinder is an anti-burglary lock cylinder for mortise locks, constructed with a brass body and equipped with a secure emergency clutch function. Certified to PN-EN 1303:2007 with resistance class 5.2, it is suited for residential and commercial entrance doors requiring rigorous intrusion and durability performance in environments exposed to temperatures from -20°C to +80°C. Key security factors include 10 pins in two rows, 100,000 key differs, and a minimum operational lifespan of 50,000 cycles.

What differentiates this version is the Abus-patented anti-picking system, featuring precisely matched pins and drivers for advanced resistance to manipulation. This feature addresses procurement risks for property managers and locksmiths needing tested protection against common break-in methods beyond the statutory standard. It is recommended for bulk purchase in multi-unit residential projects and procurement for commercial premises with elevated security requirements.

Key Features

• Emergency clutch function ? cylinder can be opened from the other side even if a key is inserted (safe lockout mitigation)


• Pre-snap protection ? reinforced design resists cylinder breaking in forced entry attempts


• Anti-pick system ? patented pin and driver mechanism increases resistance against picking and manipulation


• Drill protection ? hardened steel pins within the cylinder prevent drilling attacks


• Corrosion resistance class C ? fully functional from -20°C up to +80°C for various climates and environments


• Certified to PN-EN 1303:2007, class 5.2 ? meets strict European security and durability requirements


• 50,000+ cycles durability ? suitable for frequent use applications

Technical Specifications

• Cylinder Size: 35/50 mm (side A/side B)


• Body Material: Brass


• Pin Material: Bronze and hardened steel


• Springs: Stainless steel


• Number of Pins: 10, in 2 rows


• Combinations: 100,000


• Durability: ?50,000 cycles


• Certification: PN-EN 1303:2007


• Security Class: 5


• Attack Resistance: 2 (min. 5/10 mins, up to 40 blows)


• Corrosion Resistance: Class C


• Operating Temperature: -20°C to +80°C


• Keys Included: 5 dimple keys


• Key Security Class: 5


• Finish: Brass

Applications

This profile cylinder is used in high-traffic residential and commercial entry doors, multi-family buildings, offices, and service premises. Suitable for installations requiring certified anti-burglary protection, emergency access function, and resistance to both picking and drilling. Meets requirements for locksmiths, facility management companies, and bulk procurement projects prioritizing EN 1303:2007 compliance and key security class 5.

Packaging & Shipping

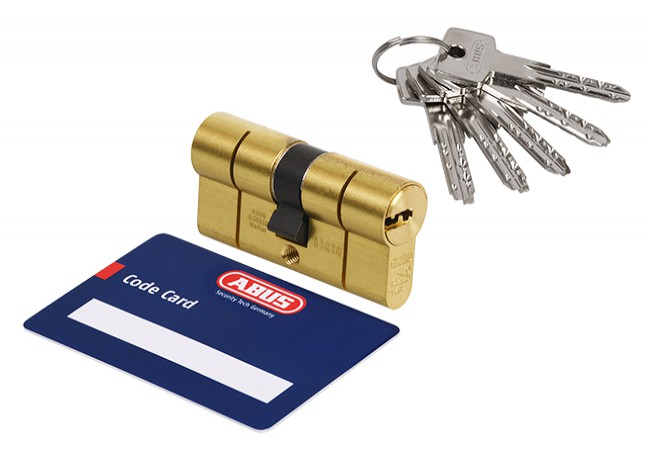

Each cylinder is factory-sealed in tamper-evident export packaging, including 5 dimple keys, a security code card, fixing screw, and a user manual. Bulk orders are available on request for project and OEM supply.
