Abus D10MM 45/45 Euro Cylinder Lock Brass High Security Emergency Function PN-EN 1303

Product Overview

Abus D10MM 45/45 is a high-security euro profile cylinder lock, made from brass and equipped with a protected clutch mechanism. It is certified to PN-EN 1303: 2007 standards and tested for at least 50,000 cycles, meeting class 5 for key security and class C for corrosion resistance from -20°C to +80°C. This cylinder is widely installed in commercial, residential, and institutional environments where security and durability are critical procurement criteria.

The standout feature is the emergency function, allowing turning of the cylinder from one side even when the key is inserted on the opposite side. This reduces user risk in urgent situations, such as during lockouts or emergencies, making it particularly suitable for bulk procurement in multi-family housing, hotels, and commercial premises seeking higher safety standards without sacrificing usability.

Key Features

• Emergency clutch function ? allows unlocking when key is inserted on opposite side for safer access


• Certified PN-EN 1303:2007 ? tested to rigorous European standards for high-security


• Pre-snap protection ? built-in feature prevents breaking of cylinder by force


• Antipicking system ? patented Abus design with precision-matched pins and counter-pins


• Corrosion resistance class C ? operates reliably from -20°C to +80°C in harsh environments


• 100,000 key combinations ? 10 tumblers in two rows support advanced security


• Drill resistance ? hardened steel elements counter drilling attacks

Technical Specifications

• Cylinder Length: 45/45 mm


• Material: Brass body; bronze and hardened steel pins; stainless springs


• Certification: PN-EN 1303: 2007 1 5 0 0 0 C 5 2 C


• Key Security: Class 5 (10 tumblers, 100,000 key variations)


• Attack Resistance: Class 2; at least 5/10 min, 40 hits


• Corrosion Resistance: Class C (-20°C to +80°C)


• Cycles Durability: >= 50,000 cycles


• Emergency Function: Standard


• Pre-snap Protection: Yes


• Antipicking System: Patented Abus

Applications

The Abus D10MM 45/45 cylinder lock is used in commercial buildings, multi-family residential properties, hotels, and offices requiring certified high-security access control. Suitable for all mortise locks and doors requiring emergency access and advanced protection from break-in, drilling, and picking. Also fits bulk installation projects and facility management with demanding attack and corrosion resistance requirements.

Packaging & Shipping

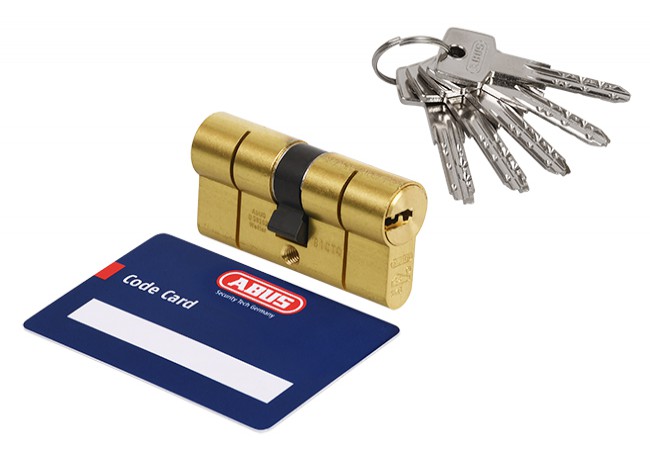

Each cylinder is packed in a sealed box including 5 drilled keys, code card, mounting screw, and installation manual. Packaging ensures tamper-proof delivery and full functionality; bulk shipments available for OEM and project orders.
