Abus D10MM Euro Cylinder Lock 40/50mm Brass EN 1303 Class 5 Emergency Function

Product Overview

Abus D10MM 40/50 brass cylinder is an anti-burglary euro profile lock insert suitable for all mortise lock types in residential and commercial doors. Certified to PN-EN 1303:2007, it delivers high durability with a minimum of 50,000 locking cycles and corrosion resistance rated class C for reliable operation from -20°C to +80°C. Security features include attack resistance class 2, snap protection, and advanced anti-drill and anti-pick mechanisms.

The emergency function (safe clutch) incorporated in the Abus D10MM allows unlocking even if a key is inserted on the opposite side, ensuring accessibility during urgent situations. This feature reduces user risk in property management and is particularly valuable for facility operators, apartment owners, and bulk procurement for multi-tenant residential complexes where emergency access compliance is essential.

Key Features

• Emergency clutch function ? allows door unlocking even if key remains on opposite side


• Anti-snap pre-snap mechanism ? protects against cylinder breaking during forced entry


• Key security class 5 ? 10 tumblers and over 100,000 unique key combinations


• Attack resistance class 2 ? resists minimum 5/10 minutes or 40 strikes as per certification


• Corrosion resistance class C ? functional from -20°C to +80°C for outdoor and indoor installation


• Anti-picking patented system ? tailored pins and counterpins verified for high effectiveness


• Durability ? tested for minimum 50,000 operation cycles

Technical Specifications

• Standard: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Cylinder Length: 40/50 mm


• Material: Brass (body), Bronze and hardened steel (pins and counterpins), Stainless steel (springs), Steel (cam)


• Key Security: Class 5 (10 tumblers, 2 rows, over 100,000 combinations)


• Attack Resistance: Class 2


• Corrosion Resistance: Class C (-20°C to +80°C)


• Cycle Durability: Minimum 50,000 cycles


• Included Keys: 5 (drilled type)


• Snap Protection: Pre-snap feature


• Anti-picking: Patented by Abus


• Warranty: 5 years

Applications

Used in residential apartments, commercial offices, and facility-managed buildings. Compatible with all types of mortise locks for main doors and security doors. Approved for scenarios requiring emergency access functionality and high protection against forced entry, burglary, and manipulation. Suitable for mass installation in multi-dwelling units, hotels, and managed properties.

Packaging & Shipping

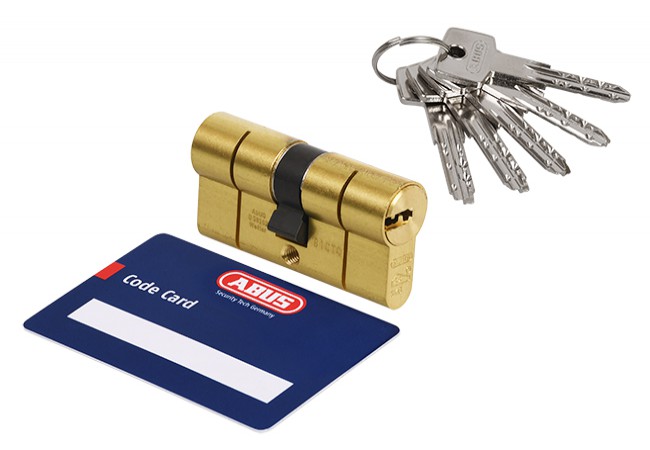

Each cylinder is delivered in a tamper-proof box including 5 drilled keys, a key card, mounting screw, and installation instructions. Bulk export packaging available for larger orders.
