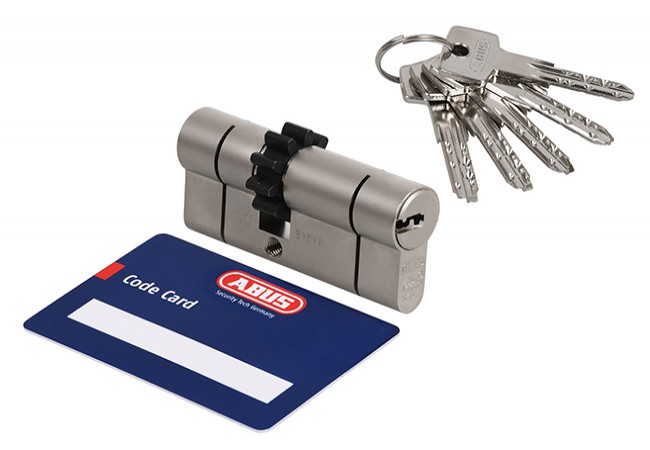

Abus D10NP 30/55 Cylinder Lock Pearl Nickel Dual Row 10 Pin Emergency Function

Product Overview

The Abus D10NP 30/55 cylinder lock in pearl nickel is an anti-burglary insert designed for use with all mortise locks. Certified to PN-EN 1303:2007 with durability rated for at least 50,000 cycles, this cylinder is intended for professional and residential doors requiring enhanced security and emergency functionality even under extreme conditions (-20°C to +80°C).

A patented anti-picking system with precisely fitted pins and counter-pins distinguishes the D10NP from regular cylinders, greatly minimizing procurement risk for projects with demanding security requirements. Its dual-row pin system (10 pins, 100,000 combinations) offers high key security, making it optimal for bulk installations in commercial property management or critical infrastructure environments.

Key Features

• Emergency function ? cylinder can be operated from both sides even if a key is inserted on one side


• Patented anti-picking system ? special pins and counter-pins for advanced protection against manipulation


• Dual-row 10 pin system ? provides 100,000 key combinations, increases security and access control


• Corrosion resistance class C ? withstands temperatures from -20°C to +80°C for outdoor and harsh environments


• Attack resistance class 2 ? resists at least 40 blows, meets highest security standard KW/WQ-02


• Brass body with hardened steel components ? increases durability and break-in resistance


• Includes 5 drilled keys, code card, mounting screw ? simplifies procurement and installation logistics

Technical Specifications

• Length: 30/55 mm


• Finish: Pearl nickel


• Key Security Class: 5 (10 pins, 100,000 combinations)


• Durability: ?50,000 cycles


• Corrosion Resistance: Class C (-20°C to +80°C)


• Attack Resistance: Class 2 (min. 5/10 min, 40 blows)


• Standard: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Material: Brass body; bronze and hardened steel pins; steel cam; stainless steel springs


• Number of Keys: 5


• Emergency Function: Included


• Warranty: 5 years

Applications

Used in residential, commercial, and public sector door assemblies where high security and emergency access are priority. Suitable for mortise locks in apartment buildings, offices, retail, schools, and remote infrastructure. Compatible with exterior and interior doors exposed to extreme temperatures or risk of physical attack; meets requirements for critical infrastructure and property management bulk procurement.

Packaging & Shipping

Each cylinder lock shipped in a sealed aesthetic box with 5 drilled keys, code card, mounting screw, and installation instructions. Packaging is tamper-evident to ensure security and full functionality on delivery. Bulk orders are available with individual units boxed and palletized for shipment.
