Abus D10NP 35/35 Euro Profile Cylinder Emergency Clutch EN 1303 Class 2 Nickel Pearl

Product Overview

The Abus D10NP 35/35 is a high-security Euro profile cylinder lock insert designed for use with mortise locks in commercial, institutional, and residential environments requiring enhanced protection. It holds certification PN-EN 1303:2007 with grade 5 for key security and attack resistance class 2 (the highest), ensuring robust operation and compliance with stringent European security standards.

The emergency clutch function sets this model apart, allowing the cylinder to be unlocked from one side even if a key is inserted on the opposite side?an essential feature for multi-user or high-traffic facilities where access must always be possible. This functionality reduces the risk of lockouts and operational interruptions, making the D10NP particularly suitable for office buildings, residential complexes, and institutional facilities with rotating occupants or staff.

Key Features

• Emergency clutch function ? enables unlocking even if a key is inserted from the opposite side


• Certified PN-EN 1303:2007 ? meets European security and durability standards for commercial installation


• Attack resistance class 2 ? withstands a minimum of 5/10 minutes force attack or 40 impact blows


• Pre-snap safety system ? protects against cylinder snapping during burglary attempts


• 10-pin, double-row system ? over 100,000 key combinations for high copy protection


• Anti-pick system ? patented mechanism with matched pins and driver pins for picking resistance


• Corrosion resistance class C ? operates reliably between -20°C and +80°C

Technical Specifications

• Size: 35/35 mm


• Standard: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Cycle Durability: ?50,000 cycles


• Key Security Class: 5


• Attack Resistance Class: 2


• Pin Tumblers: 10 (double-row)


• Key Combinations: ?100,000


• Corrosion Resistance: Class C (-20°C to +80°C)


• Body Material: Brass


• Pins/Driver Pins: Bronze and hardened steel


• Cam: Steel


• Springs: Stainless steel


• Keys Included: 5 drilled keys


• Warranty: 5 years

Applications

Commonly used in high-security doors for office buildings, apartment blocks, schools, and healthcare facilities. Compatible with mortise locks and suitable for environments requiring emergency unlocking, high key variation, and resistance to forced entry, picking, and adverse weather conditions. Recommended for specification-driven new builds and door retrofits where EN 1303 compliance is required.

Packaging & Shipping

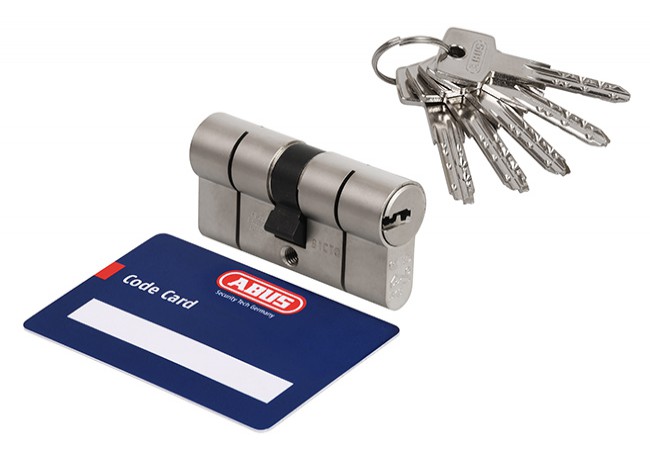

Each cylinder is individually packed in a sealed box containing 5 drilled keys, code card, fixing screw, and installation instructions. Packaging is tamper-evident to ensure product integrity during transport.
