Abus D10NP 35/40 Euro Cylinder Lock Nickel Pearl Emergency Clutch EN 1303 Class 5

Product Overview

The Abus D10NP 35/40 nickel pearl euro cylinder is an anti-burglary lock cylinder suitable for use with all mortise locks in commercial and residential buildings. Certified to PN-EN 1303:2007, it offers high resistance to physical attack and corrosion (class C), and achieves minimum durability of 50,000 cycles. Security performance includes class 5 key protection and class 2 attack resistance, meeting stringent requirements for access control and property protection.

This cylinder features an emergency clutch, allowing operation even with a key inserted on the opposite side?a crucial solution for facilities needing uninterrupted access, such as multi-unit residential or office buildings. Its patented anti-picking system addresses procurement risk by reducing vulnerability to lock manipulation, making it a strong choice for bulk upgrades of high-security doors in commercial property portfolios.

Key Features

• Emergency clutch function ? cylinder can be operated even if a key is inserted from the opposite side


• Patented anti-picking system ? unique pin and driver design resists lock picking attempts


• Pre-snap protection ? integrated break-resistance prevents cylinder snapping during forced entry


• Key protection class 5 ? 10 pin tumbler system delivers 100,000 combinations, complicating key duplication


• Attack resistance class 2 ? withstands minimum 40 physical blows and resists attack for at least 5?10 minutes


• Corrosion resistance class C ? rated for environments from -20°C to +80°C, suitable for exterior doors


• Durability ? tested for at least 50,000 locking cycles, ideal for high-traffic applications

Technical Specifications

• Cylinder Dimensions: 35/40 mm


• Finish: Nickel pearl


• Number of Pins: 10 (2 rows)


• Key Combinations: 100,000


• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Attack Resistance: Class 2 (min 5/10 min, 40 blows)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Key Protection: Class 5


• Cycle Durability: 50,000 cycles minimum


• Material (Cylinder Body): Brass


• Material (Pins/Drivers): Bronze and hardened steel


• Spring Material: Stainless steel


• Warranty: 5 years

Applications

Used in commercial and residential spaces for securing mortise locks, especially suited for high-security doors, apartment complexes, office buildings, and exterior entry points exposed to weather. Recommended for fire, access, and security doors that require certified anti-burglary protection and reliability in high-traffic or multi-user environments. Bulk procurement beneficial for managed property upgrades and facility renovation projects demanding PN-EN 1303 certified hardware.

Packaging & Shipping

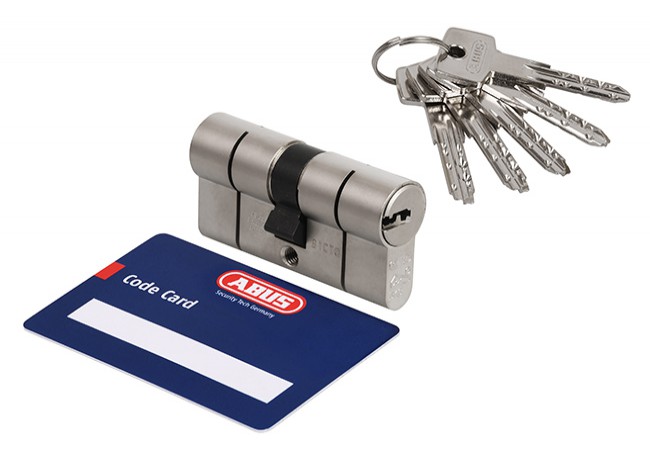

Each cylinder is individually packaged in a sealed, tamper-evident box containing five dimple keys, code card, mounting screw, and installation manual. Bulk orders are supplied in outer cartons for secure OEM and site delivery.
