Abus D10NP 35/65 Euro Cylinder Lock Emergency Function PN-EN 1303 Pearl Nickel

Product Overview

The Abus D10NP 35/65 euro profile cylinder provides high-security key access for commercial and residential buildings equipped with standard mortise locks. Certified according to PN-EN 1303:2007 and KW/WQ-02 (Class C), it delivers proven durability over 50,000 cycles, with robust attack resistance, and is rated for operation in corrosive environments from -20°C to +80°C. Security features include anti-drill protection, an advanced anti-pick system, and pre-snap technology to prevent lock snapping attacks.

What sets this model apart is its double-sided emergency function clutch, allowing the cylinder to operate even if a key remains inserted on the other side?eliminating access disruptions in shared or multi-tenant facilities and reducing calls for emergency lockout service. This makes the D10NP particularly advantageous for property managers or institutional buyers overseeing multiple dwellings, office facilities, or hotels with frequent occupant turnover.

Key Features

• Certified PN-EN 1303:2007 and KW/WQ-02 Class C ? top-level attack and corrosion resistance for high-security applications


• Emergency function clutch ? key operation from both sides, even with a key inserted on the opposite side


• Pre-snap security feature ? designed to resist and deter cylinder snapping attempts


• 10-pin system ? up to 100,000 individual key combinations for advanced masterkey planning


• Anti-pick patented system ? matched pins and driver pins greatly increase resistance to lock picking


• Anti-drill protection ? bronze and hardened steel elements shield critical components from drilling


• Brass body and steel/bronze internals ? ensures high operational lifespan and mechanical precision

Technical Specifications

• Cylinder Length: 35/65 mm


• Material: Brass body, bronze and hardened steel pins, steel driver


• Key Security Class: 5 (10 pins, 100,000 combinations)


• Attack Resistance Class: 2 (min. 5/10 min, 40 strikes)


• Durability: 50,000 cycles minimum


• Corrosion Resistance: Class C (-20°C to +80°C)


• Standard: PN-EN 1303:2007


• Standard: KW/WQ-02 Class C


• Finish: Pearl Nickel


• Keys Included: 5 dimple keys


• Emergency Function: Yes


• Anti-drill Protection: Yes

Applications

Abus D10NP cylinders are suitable for internal and external doors in multi-residential complexes, office buildings, and hospitality facilities requiring high break-in protection and compliance with EN 1303 and KW/WQ-02 standards. The emergency clutch is especially suited for shared environments or facilities where key retention inside the cylinder could otherwise lead to lockouts. Compatible with all standard European mortise locks and suited for both retrofit and new project installations.

Packaging & Shipping

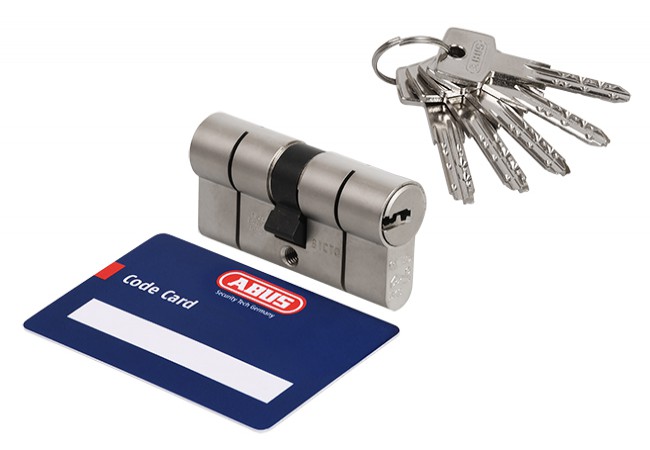

Each cylinder is delivered in a sealed, tamper-evident box containing 5 dimple keys, a fixing screw, a code card, and installation instructions. Bulk packaging and one-key systems are available on request for large-volume purchasers.
