Abus D10NP 50/50 Cylinder Lock PN-EN 1303:2007 Class 5 Nickel Pearl Emergency Function

Product Overview

The Abus D10NP 50/50 cylinder lock features a high-security design for use with mortise locks in residential and commercial environments. Certified to PN-EN 1303:2007, this insert provides tested burglary resistance with class 2 attack protection and class 5 key security, suitable for doors exposed to high-risk intrusion or demanding security requirements. Durability is guaranteed for a minimum of 50,000 cycles, and corrosion resistance is rated at class C for reliable operation from -20°C to +80°C.

Its emergency function allows key operation from both sides, eliminating lockout risk in situations where a key is left inserted. The patented Abus anti-picking system and pre-snap break protection further address procurement concerns around unauthorized access and physical tampering. This lock is particularly recommended for bulk installation in apartment complexes, office buildings, or institutional facilities requiring robust validated security and long-term operational stability.

Key Features

• Certified PN-EN 1303:2007 ? complies with European security and durability standards for cylinder locks


• Class 5 key security ? 10-pin double-row system offers 100,000 unique key combinations, reducing unauthorized duplication risk


• Emergency function ? allows unlocking from both sides even if a key is present, ensuring secure access for facility managers


• Pre-snap protection ? specialized break-resistant design defends against cylinder snapping attacks


• Class 2 attack resistance ? withstands minimum 5/10 minutes and 40 hammer strikes for forced entry protection


• Anti-picking system ? patented pins and counter-pins from Abus make manipulation difficult for lock pickers


• Corrosion resistance class C ? maintains function from -20°C to +80°C for outdoor or exposed installations

Technical Specifications

• Length: 50/50 mm (overall 100 mm)


• Material: Brass body, bronze and hardened steel pins, steel cam, stainless springs


• Key Security: Class 5 (10 pins, 100,000 combinations)


• Attack Resistance: Class 2 (min. 5/10 minutes, 40 strikes)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Durability: 50,000 cycles minimum


• Certification: PN-EN 1303:2007


• Emergency Function: Yes (operable from both sides)


• Included Keys: 5 drilled keys


• Guarantee: 5 years


• Finish: Nickel pearl

Applications

Used in residential apartment entries, commercial office doors, institutional facilities, and environments requiring validated anti-burglary protection. Suitable for mortise lock assemblies, high-traffic entries, and doors where emergency access (dual key use) is needed. Approved for installations requiring compliance with European standards and resistance against picking, drilling, and snapping attacks.

Packaging & Shipping

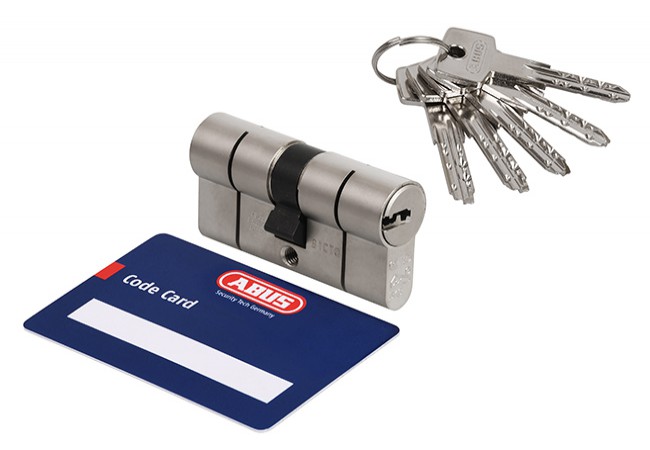

Each cylinder lock is supplied in a sealed box including 5 drilled keys, a code card, fixing screw, and installation instructions. Packaging is tamper-evident for security assurances and bulk orders are available for facility projects.
