Abus D10NP Cylinder Lock 30/35 Nickel Pearl Safe Clutch EN 1303 Class 5.2

Product Overview

The Abus D10NP 30/35 nickel pearl cylinder lock is a high-security anti-burglary insert designed for use with mortise locks in residential and commercial settings. Certified to PN-EN 1303:2007 and rated class C for corrosion and attack resistance, this cylinder provides security and durability in environments with frequent access demands and exposure to varying temperatures.

What distinguishes the D10NP is its emergency function (safe clutch), allowing operation from one side even if a key is inserted on the other. This feature eliminates the risk of lockouts, making it highly attractive for facility management, hotels, and apartment complexes where access continuity and user convenience are critical. It is especially suited for bulk procurement in managed properties and projects requiring high anti-tampering standards.

Key Features

• Safe clutch emergency function ? operation possible with key inserted on opposite side, prevents lockout incidents


• Pre-snap protection ? patented mechanism resists cylinder break-off attacks


• Anti-drill security ? hardened steel elements impede drilling attempts on the lock body


• Class 5 key security ? 10 tumbler pins in 2 rows provide 100,000 combinations and enhanced anti-picking design


• Durability tested ? minimum 50,000 operational cycles for extended service life


• Corrosion resistance class C ? reliable performance from -20°C to +80°C in challenging conditions


• Attack resistance class 2 ? withstands min. 5/10 minutes and 40 hammer blows according to KW/WQ-02 standard

Technical Specifications

• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Durability: Minimum 50,000 cycles


• Key Security Class: 5 (10 pins, 100,000 combinations)


• Attack Resistance Class: 2


• Corrosion Resistance: Class C (-20°C to +80°C)


• Material - Cylinder Body: Brass


• Material - Pins & Counterpins: Bronze, hardened steel


• Material - Driver: Steel


• Material - Springs: Stainless steel


• Length: 30/35 mm


• Finish: Nickel pearl


• Guarantee: 5 years

Applications

Suited for installation in mortise locks in residential, commercial, hospitality, and public sector buildings. Recommended for managed property access, hotel room doors, apartment buildings, offices, and any application requiring emergency access function and high tamper resistance. Compatible with fire-rated doors and projects requiring certified hardware. Bulk install in multi-unit developments or facility renovations.

Packaging & Shipping

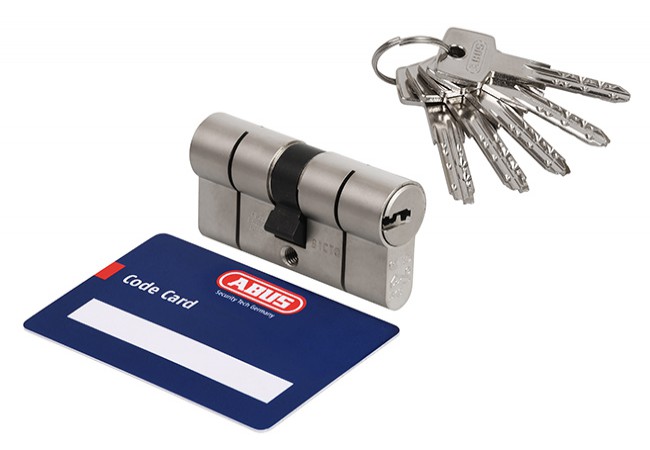

Each cylinder is packed in a sealed box with 5 drilled keys, coded card, fixing screw, and installation manual. High-security tamper-evident packaging ensures product integrity. Bulk and OEM packaging available upon request.
