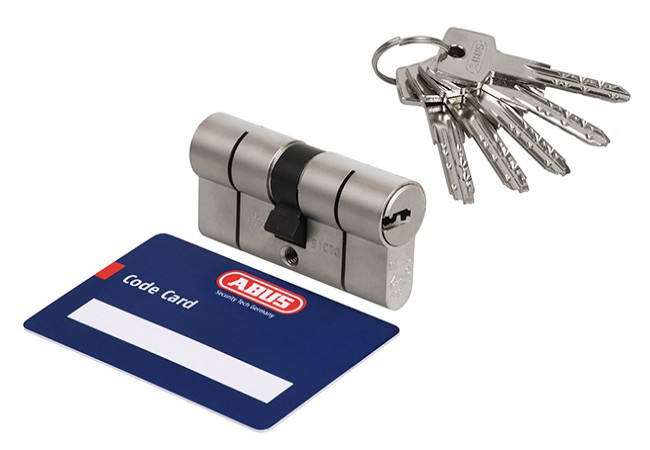

Abus D10NP Euro Cylinder Lock 30/55mm Pre-Snap Protection PN-EN 1303:2007 Nickel Pearl

Product Overview

Abus D10NP 30/55 is a high-security euro cylinder lock, designed for use with mortise locks in residential and commercial door installations. It carries the PN-EN 1303:2007 certification and achieves key security class 5 and corrosion resistance class C, with proven durability of at least 50,000 cycles. The cylinder offers emergency override functionality, allowing locking/unlocking even when a key is inserted from the opposite side.

The distinguishing feature of the Abus D10NP is its pre-snap protection mechanism, which guards against cylinder snapping attacks?a common break-in method in high-risk environments. This delivers compliance with stringent security project specs and minimizes the procurement risk for facilities requiring certified anti-burglary hardware. Particularly suited for bulk procurement in residential developments, commercial properties, and retrofit security upgrades.

Key Features

• PN-EN 1303:2007 certified ? fulfills European security, durability, and corrosion resistance requirements


• Pre-snap protection ? built-in mechanism prevents break-in via cylinder snapping


• 10-pin double row system ? delivers 100,000 key combinations for advanced key security (class 5)


• Emergency override function ? allows operation when a key is present in the opposite side


• Antipicking system ? patented pin and tumbler design resists manipulation


• Drill-resistant construction ? hardened steel and bronze inserts protect against attack


• Corrosion resistance class C ? functional from -20°C to +80°C, suitable for extreme environments

Technical Specifications

• Length: 30/55 mm


• Material (Body): Brass


• Material (Pins and Counterpins): Bronze and hardened steel


• Corrosion Resistance: Class C (-20°C to +80°C)


• Key Security: Class 5 (10 pins, 100,000 combinations)


• Durability: 50,000 cycles minimum


• Attack Resistance: Class 2 (min. 5/10 min, 40 impacts); Class C KW/WQ-02


• Certification: PN-EN 1303:2007


• Guarantee: 5 years


• Emergency Function: Yes (double-sided key operation)

Applications

Designed for retrofit and new installation in residential apartments, office buildings, and hospitality facilities where certified anti-burglary, drill, and snap-resistant cylinders are required. Suitable for use on fire-rated and security doors with mortise lock bodies. Recommended for bulk installation projects and security upgrades in areas subject to high burglary risk and strict compliance requirements.

Packaging & Shipping

Individually boxed in sealed, tamper-evident packaging including five drilled keys, code card, mounting screw, and installation manual. Bulk and OEM shipments supplied palletized upon request.
