ABUS D10NP Euro Profile Cylinder 40/50mm Emergency Function Pearl Nickel EN 1303

Product Overview

ABUS D10NP 40/50 is a high-security euro profile cylinder used in residential, commercial, and institutional doors, compatible with all mortise locks. It carries PN-EN 1303:2007 certification, offers attack resistance class 2, and operates reliably in conditions ranging from -20°C to +80°C. The pearl nickel finish supports requirements for durably aesthetic installations.

A standout feature is its integrated emergency function (safe coupling), which allows lock operation from one side even if a key is inserted on the other. This removes the user risk of lockout in urgent situations and suits facility managers needing flexible access control. Particularly well-suited for bulk procurement in multi-unit residential developments or applications with high security and anti-corrosion requirements.

Key Features

• Anti-burglary rating ? Attack resistance class 2 with pre-snap function for breaking protection


• 10 tumbler system ? Provides 100,000 key combinations for increased security


• Emergency function ? Cylinder can be turned from one side even if key is inserted in opposite side


• Anti-picking system ? Patented pins and counter-pins verified effective by Abus experts


• Durability ? Tested for at least 50,000 cycles under PN-EN 1303:2007 standard


• Corrosion resistance ? Class C, operational from -20°C to +80°C for demanding environments


• High-grade materials ? Brass body, bronze and hardened steel pins, stainless springs

Technical Specifications

• Standard: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Attack Resistance: Class 2 (min. 5?10 min, 40 strikes)


• Key Security: Class 5, 10 tumblers, 100,000 combinations


• Durability: ?50,000 cycles


• Corrosion Resistance: Class C, operational -20°C to +80°C


• Material Body: Brass


• Material Pins: Bronze and hardened steel


• Material Actuator: Steel


• Finish: Pearl Nickel


• Length: 40/50 mm


• Included Keys: 5 drilled keys

Applications

Primarily used in entrance and internal doors in residential apartment complexes, office buildings, hotels, and institutional facilities. Suitable for demanding environments requiring EN 1303 certification, anti-corrosion and anti-burglary protection. Compatible with mortise locks, especially where emergency function and high key diversity are needed. Well-adapted for fire-rated doors subject to access control or bulk installation in managed buildings.

Packaging & Shipping

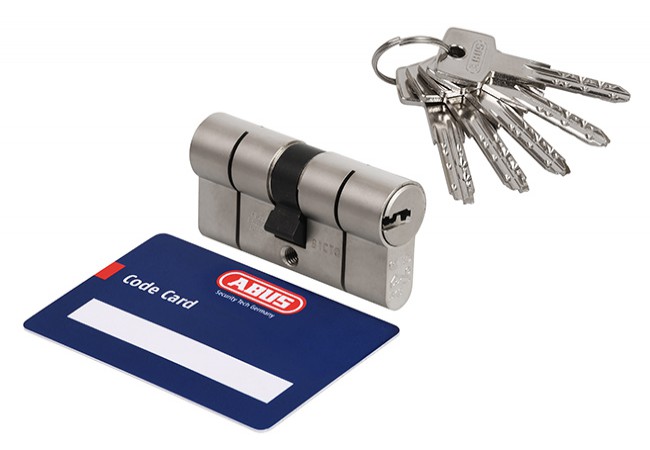

Each cylinder is delivered in a sealed, tamper-evident box including 5 keys, a code card, mounting screw, and an installation manual. Bulk shipments are available for OEM or project customers.
