Abus KD10 30g/30 Profile Cylinder Emergency Clutch Class 5 Pearl Nickel EN 1303

Product Overview

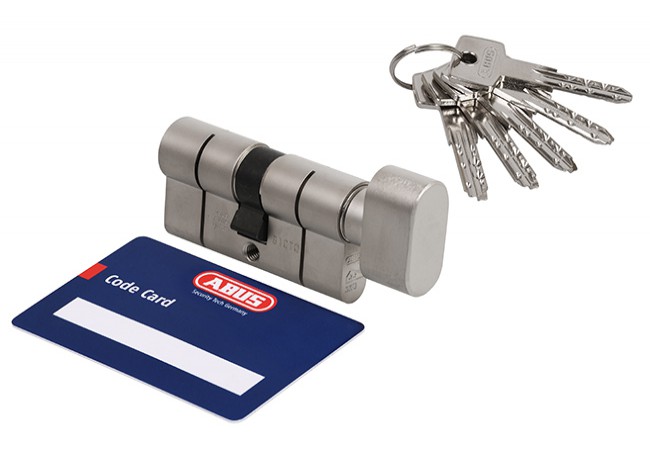

The Abus KD10 30g/30 profile cylinder is a high-security anti-burglary insert for use with all standard mortise locks in residential or commercial doors. It meets the PN-EN 1303:2007 standard with class 5 key protection, class 2 attack resistance, and corrosion resistance class C, supporting reliable operation in temperatures from -20°C to +80°C. This durable brass-bodied cylinder is rated for at least 50,000 cycles and is supplied with a set of 5 dimple keys, a coded card, and mounting screw.

A key differentiator of this model is the built-in emergency function clutch, allowing the cylinder to be operated even when a key is inserted on the opposite side. This eliminates lockout risk for facility managers and building owners, ensuring secure but accessible entry in multi-user environments. It is especially well-suited for large residential complexes, public buildings, and professional property management applications.

Key Features

• Emergency clutch function ? cylinder can be operated from either side even if a key remains inserted, preventing accidental lockouts


• Certified to PN-EN 1303:2007 ? fulfills class 5 key protection, class C corrosion, and class 2 attack resistance for high-security projects


• Pre-snap technology ? integrated break protection prevents effective intrusion via cylinder snapping


• 10-pin, two-row system ? ensures 100,000 key combinations for increased master key security and suitability for complex access systems


• Hardened anti-drill pins ? resists drilling attacks with bronze and steel pins in the keyway


• Patented anti-picking system ? unique Abus mechanism with precision-matched pins and drivers inhibits lock picking


• 5 dimple keys and security card included ? supports secure key management for property portfolios

Technical Specifications

• Cylinder Length: 30 mm x 30 mm


• Body Material: Brass


• Pin/Driver Material: Bronze and hardened steel


• Working Temperature: -20°C to +80°C


• Cycle Durability: ?50,000 cycles


• Key Security Class: 5 (10 pins, 100,000 combinations)


• Attack Resistance: Class 2 (min. 5/10 min attack, 40 strikes)


• Corrosion Resistance: Class C


• Standard: PN-EN 1303:2007


• Anti-snap Mechanism: Pre-snap feature


• Keys Included: 5 dimple keys


• Security Card: Included


• Mounting Screw: Included


• Finish: Pearl nickel

Applications

Suitable for securing main entry and internal doors in apartment complexes, office buildings, schools, and other public or high-traffic commercial facilities. Recommended for use with certified mortise locks wherever high burglary resistance, frequent access, and emergency override are required. Designed to meet B2B needs in property management, logistical facilities, and controlled access projects.

Packaging & Shipping

Supplied in a factory-sealed tamper-evident box containing the cylinder, 5 dimple keys, code card, and mounting screw. Export packaging meets elevated handling and shipping standards to maintain product security. Bulk procurement options and keyed-alike systems available on request.
