Abus KD10 30g/35 Cylinder Lock Nickel Pearl with Knob PN-EN 1303 Class 5.2 Emergency

Product Overview

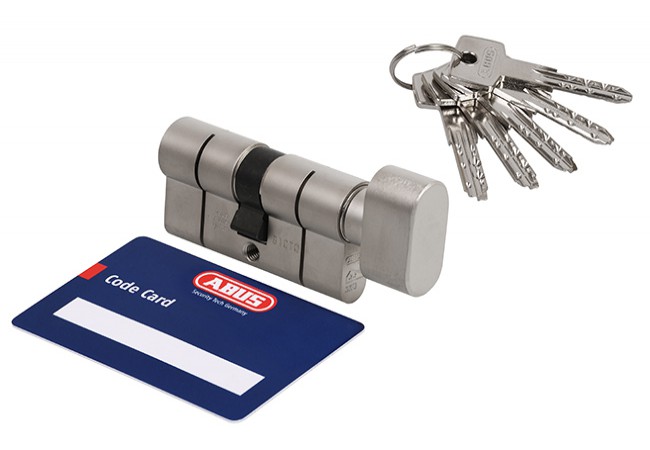

The Abus KD10 30g/35 nickel pearl cylinder with knob is a high-security anti-burglary cylinder suitable for use with all mortise locks in residential and commercial buildings. Certified to PN-EN 1303:2007 with class 5.2 for key security and class 2 for attack resistance, it is tested for at least 50,000 cycles and withstands intensive use and harsh conditions from -20°C to +80°C.

A key differentiating feature of this cylinder is its emergency function (safe clutch), allowing the cylinder to be operated from one side even if a key is inserted on the other side. This eliminates the risk of lockouts and ensures reliable access for facility managers, hospitality operators, or residential complex administrators. It is particularly suited for bulk orders in projects requiring high-security and anti-manipulation standards as well as ease of access control.

Key Features

• Certified to PN-EN 1303:2007 ? tested for mechanical durability and security standards


• Attack resistance class 2 (min. 5/10 minutes, 40 strikes) ? highest grade for anti-burglary protection


• Emergency function ? cylinder operable from outside with another key inserted inside


• Pre-snap protection ? advanced anti-break-off feature for enhanced security


• 10-pin system, 2 rows ? over 100,000 key combinations for high security


• Antipicking system ? patented Abus technology with matched pins and counterpins


• Components made of brass, hardened steel, bronze ? corrosion resistance class C, suitable for -20°C to +80°C

Technical Specifications

• Size: 30g/35 (cylinder length 30 mm inside, 35 mm outside with knob)


• Material: Brass body, steel and bronze pins, stainless steel springs


• Surface Finish: Pearl Nickel


• Number of Pins: 10 (in 2 rows)


• Key Security: Class 5 (per PN-EN 1303:2007)


• Attack Resistance: Class 2


• Corrosion Resistance: Class C


• Durability: ?50,000 operating cycles


• Certification: PN-EN 1303:2007


• Included Keys: 5 dimple keys


• Operating Temperature: -20°C to +80°C


• Special Feature: Safe clutch (emergency function)


• Pre-Snap: Yes (anti-break feature)

Applications

Suitable for internal and external doors in residential developments, office buildings, hotels, and mixed-use commercial facilities. Compatible with all standard mortise locks, especially in projects demanding anti-burglary and high key security certification, such as access-controlled entries, emergency exit doors, and public sector buildings. Well-matched to bulk procurement by security integrators, building managers, or hospitality sector specifiers.

Packaging & Shipping

Each cylinder is individually packed in a sealed box with 5 dimple keys, a security code card, mounting screw, and installation instructions. Tamper-evident packaging guarantees products are delivered uncompromised; bulk shipping options available for project orders.
