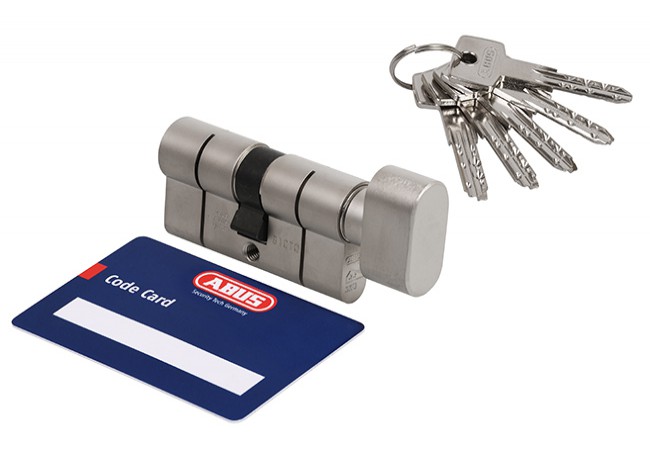

Abus KD10 30g/40 Cylinder Lock Insert Nickel Pearl Emergency Function Class 5.2

Product Overview

The Abus KD10 30g/40 nickel pearl cylinder lock insert with knob is designed for use in all mortise locks in commercial, institutional, or residential settings that require high-security access control. Certified to PN-EN 1303:2007 and KW/WQ-02 class C, it features corrosion resistance from -20°C to +80°C and durability of at least 50,000 operating cycles, making it suitable for high-traffic environments.

A distinct advantage of this SKU is the emergency function (safe clutch), which allows operation even when a key is inserted on the opposite side, eliminating risk of lockouts during maintenance or in multi-user facilities. This makes the KD10 especially appropriate for bulk procurement in apartment buildings, hospitals, and office complexes where continuous access and security are critical.

Key Features

• Emergency function clutch ? enables turning the cylinder even with a key inserted from the other side, preventing accidental lockouts


• Pre-snap protection ? specially designed break-away mechanism resists forced snapping attacks on the cylinder


• Antipicking system ? patented Abus technology with matched pins and counter-pins increases resistance to picking


• 10 tumbler system ? two rows provide up to 100,000 key combinations for enhanced security


• Drill protection ? integrated hardened components guard against drilling attempts


• Corrosion resistance class C ? operates reliably from -20°C to +80°C, suitable for outdoor or humid environments


• Durability ? certified for at least 50,000 cycles according to PN-EN 1303:2007

Technical Specifications

• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Corrosion Resistance: Class C (-20°C to +80°C)


• Durability: minimum 50,000 cycles


• Key Security: Class 5 (10 tumblers, 100,000 combinations)


• Attack Resistance: Class 2 (minimum 5/10 minutes, 40 strikes), class C KW/WQ-02


• Material: Body - brass; Pins/counter-pins - bronze and hardened steel; Springs - stainless steel; Driver - steel


• Finish: Nickel pearl


• Knob: Included


• Cylinder Dimension: 30g/40


• Warranty: 5 years


• Keys Included: 5 drilled keys


• Accessories: code card, fixing screw

Applications

Ideal for use in mortise locks installed in commercial buildings, multi-unit apartment blocks, hospitals, schools, and offices requiring high physical security and access continuity. Suitable for exterior and interior doors exposed to harsh environments or high usage. Compatible with master key systems on request and meets requirements for certified, anti-burglary door assemblies.

Packaging & Shipping

Each unit is packaged in a tamper-evident sealed box containing the cylinder, knob, 5 drilled keys, code card, fixing screw, and operating manual. Bulk orders are available for B2B procurement with secure and traceable packaging.
