Abus KD10 30g/50 Cylinder Lock Brass Emergency Function PN-EN 1303 Class 5

Product Overview

The Abus KD10 30g/50 brass cylinder lock is an anti-burglary cylinder certified to PN-EN 1303:2007, suitable for integration with all mortise locks. It is designed for doors in residential and commercial environments requiring high durability and security, with class C corrosion resistance ensuring reliable functionality from -20°C to +80°C, and a minimum lifespan of 50,000 lock/unlock cycles.

This model features an emergency function (safe coupling), allowing operation even when a key is inserted on the opposite side, which is critical for facility access control and eliminates the risk of accidental lockout. Its pre-snap mechanism and class 2 attack resistance ensure compliance with demanding security specifications, making it particularly suited for bulk procurement in multi-tenant buildings, hotels, and commercial properties where high security and access flexibility are required.

Key Features

• Emergency function ? allows cylinder operation with key inserted on the opposite side, supports access in emergency situations


• Pre-snap mechanism ? protects against lock cylinder breakage in case of attack


• Class 5 key security ? 10 pins in 2 rows, over 100,000 combinations for advanced pick resistance


• Attack resistance class 2 ? withstands minimum 5/10 minutes and 40 strikes, meets class C security standard


• Corrosion resistance class C ? reliable operation from -20°C to +80°C for external and harsh environments


• Anti-picking patented system ? specially designed pins and counterpins verified for high security


• Durable construction ? brass body, bronze/hardened steel pins, stainless springs; at least 50,000 cycles

Technical Specifications

• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Key Security Class: 5 (10 pins, 2 rows, 100,000 combinations)


• Attack Resistance: Class 2 (Minimum 5/10 minutes, 40 strikes)


• Corrosion Resistance: Class C


• Operating Temperature: -20°C to +80°C


• Cylinder Material: Brass


• Pins/Counterpins: Bronze and hardened steel


• Springs: Stainless


• Durability: At least 50,000 cycles


• Included Keys: 5 drilled keys


• Length: 30g/50 mm


• Warranty: 5 years

Applications

Ideal for residential apartment blocks, hotels, commercial offices, and managed properties requiring certified anti-burglary cylinder locks. Suitable for doors equipped with mortise locks, especially where access flexibility and emergency override are needed. Applicable for installations in high humidity or outdoor-exposed environments ensuring corrosion resistance and durability.

Packaging & Shipping

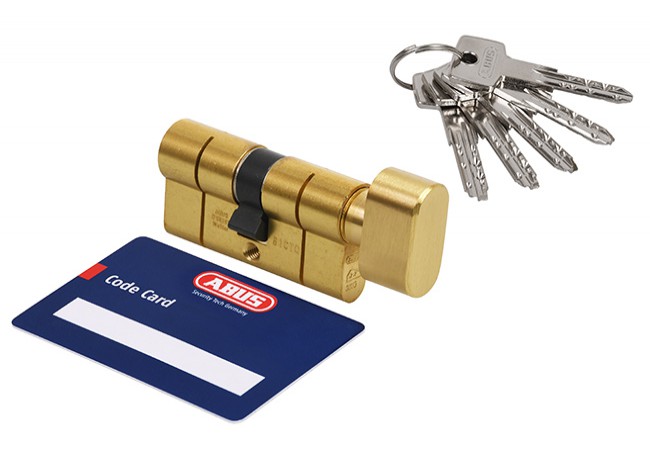

Each cylinder lock is shipped in a sealed, tamper-evident box including 5 drilled keys, security card, mounting screw, and installation documentation. Bulk orders packed for export with protective materials. Returns not accepted if packaging is opened or tampered.
