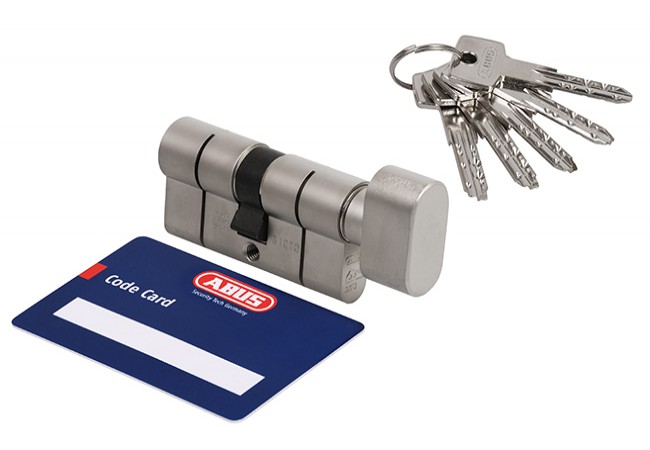

Abus KD10 30g/55 Cylinder Lock Euro Profile Pre-Snap Protection Nickel Pearl Class 5.2

Product Overview

Abus KD10 30g/55 nickel pearl cylinder lock with knob is an anti-burglary euro profile cylinder designed for use with mortise locks in residential and commercial buildings. Certified to PN-EN 1303:2007 and class C corrosion resistance, it features emergency function operation and is rated for at least 50,000 locking cycles, making it suitable for high-traffic environments where security and durability are prioritised.

The standout feature of this SKU is its pre-snap protection, which actively safeguards against cylinder breaking, a critical concern in forced-entry scenarios. This eliminates a significant security risk for facility managers responsible for access control in multi-unit properties or retail spaces. Particularly well-suited for bulk installation in commercial security upgrades or premium residential developments requiring class 5.2 key protection and high resistance to physical attack.

Key Features

• Pre-snap protection ? integrated mechanism resists cylinder breaking and tampering


• Emergency function ? allows turning key even when one is inserted on the opposite side


• 10 tumbler system ? 100,000 key combinations provides class 5 protection against unauthorized duplication


• Anti-pick system ? patented pins and counter-pins prevent picking attempts


• Corrosion resistance class C ? operates reliably from -20°C to +80°C in demanding environments


• Attack resistance class 2 ? withstands minimum 5/10 minutes, 40 strikes as per highest standard


• Durable construction ? brass body, bronze and hardened steel pins, stainless steel springs for longevity

Technical Specifications

• Cylinder Length: 30g/55 mm


• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Key Security: Class 5 (10 tumblers, 100,000 combinations)


• Attack Resistance: Class 2 (min. 5/10 min, 40 strikes)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Cycle Durability: 50,000 cycles minimum


• Material: Brass cylinder, bronze and hardened steel pins, stainless steel springs


• Finish: Nickel pearl


• Included Keys: 5 drilling keys (with code card)


• Warranty: 5 years

Applications

Suitable for residential apartment complexes, commercial office environments, retail premises, and access-controlled institutional buildings. Compatible with mortise locks, suitable for situations that demand emergency function, high attack and pick resistance, and certified security standards. Ideal for fire-rated doors, multi-unit property security upgrades, and projects requiring class C corrosion protection.

Packaging & Shipping

Each cylinder is delivered in sealed, tamper-proof packaging with 5 drilling keys, code card, mounting screw, and detailed installation instructions. Bulk orders shipped in export cartons for secure transport; custom one-key systems available upon request.
