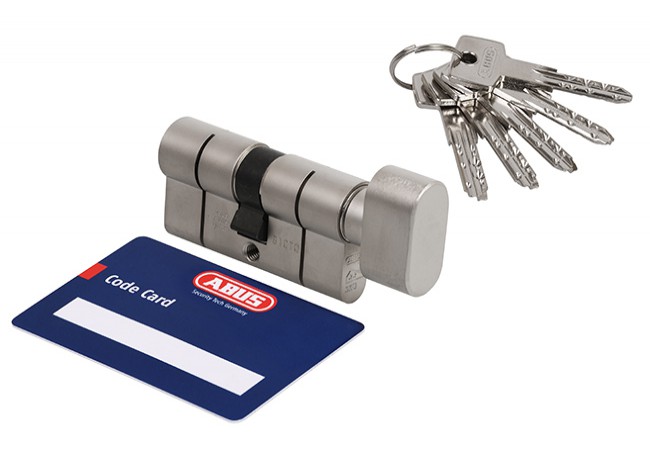

Abus KD10 35g/45 Profile Cylinder Lock Nickel Pearl Class 5 Anti-Picking Clutch

Product Overview

The Abus KD10 35g/45 nickel pearl cylinder lock is a high-security profile cylinder equipped with an emergency function clutch, certified to PN-EN 1303:2007 and rated at class C for corrosion resistance and attack resistance. Designed for use with all mortise locks, it is suitable for residential and commercial entrances, and offers guaranteed durability of at least 50,000 operating cycles within a temperature range of -20°C to +80°C.

A notable feature of this model is its patented anti-picking system with matched pins and counter-pins, which delivers proven resistance confirmed by expert testing. This eliminates procurement risks for projects requiring advanced burglary protection and minimizes fitting failures due to unauthorized manipulation. It is particularly recommended for bulk installations in property management, multi-family residential, and public sector access control where certified security hardware is a requirement.

Key Features

• Emergency clutch function ? enables cylinder to operate from both sides even with a key inserted


• 10-pin dual-row mechanism ? provides up to 100,000 key combinations for high key security (class 5)


• Pre-snap protection ? prevents breakage of the cylinder under forced attack


• Drill resistance ? hardened steel pins and construction withstand attempted drilling


• Attack resistance class 2 ? withstands minimum 5/10 minutes and 40 impacts per certification


• Corrosion resistance class C ? fully operational in environments from -20°C to +80°C


• Patented anti-picking system ? specialized pins and counter-pins certified for advanced manipulation resistance

Technical Specifications

• Length: 35 mm / 45 mm


• Material: Brass body, bronze and hardened steel pins, stainless steel springs


• Finish: Nickel pearl


• Key Security Class: 5 (10 pins, 100,000 combinations)


• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Attack Resistance: Class 2 (min. 5/10 min, 40 impacts), Class C KW/WQ-02


• Corrosion Resistance: Class C (-20°C to +80°C)


• Durability: ? 50,000 cycles


• Included Keys: 5 drilled keys


• Emergency Function: Standard clutch (operable with key in opposite side)


• Pre-snap Protection: Yes


• Anti-picking Feature: Patented system

Applications

Recommended for use in residential, multi-family housing, commercial facilities, and public sector access control. Compatible with all mortise lock types and suitable for entrance doors requiring certified burglary resistance, emergency access function, and high key security. Ideal for bulk procurement by property managers and installers working on security upgrade projects.

Packaging & Shipping

Each cylinder is boxed in a sealed package including 5 drilled keys, coded card, mounting screw, and instruction leaflet. Export packaging uses tamper-evident cartons to preserve product integrity. Bulk shipment options available for large B2B orders.
