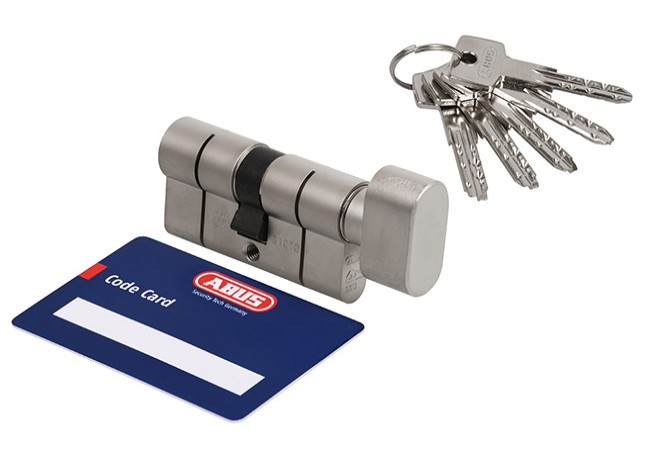

Abus KD10 40g/45 Cylinder Lock Anti-Picking Emergency Clutch Pearl Nickel EN 1303

Product Overview

The Abus KD10 40g/45 cylinder lock is an anti-burglary insert for mortise locks, certified to PN-EN 1303:2007 and KW/WQ-02 class C for resistance to physical attack and corrosion. Designed for residential and commercial doors, it features a high-security clutch (emergency function), allowing key operation even when another key is inserted from the opposite side. The lock is rated for over 50,000 operating cycles and able to withstand severe conditions from -20°C to +80°C.

A standout feature is the patented Abus anti-picking system, with precisely matched pins and driver pins that minimize manipulation risks. This eliminates procurement risk for buyers demanding proven anti-tampering mechanisms for demanding environments. The KD10 is recommended for facility managers, access control integrators, and bulk procurements in security-sensitive commercial installations.

Key Features

• Emergency clutch function ? allows lock operation even if a key is inserted from the opposite side (safe access in emergencies)


• Pre-snap protection ? enhanced resistance to lock breakage during forced entry attempts


• 10 pin system ? up to 100,000 key combinations for advanced key security


• Anti-picking patented pins ? specially designed pins and driver pins prevent lock manipulation


• Corrosion resistance class C ? operates reliably from -20°C to +80°C in challenging environments


• Attack resistance class 2/C ? withstands minimum 5/10 minutes force and 40 strikes


• Brass, bronze, and hardened steel construction ? ensures mechanical durability and longevity

Technical Specifications

• Standard: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Durability: 50,000 cycles minimum


• Resistance to attack: Class 2 (min. 5/10 min, 40 strikes)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Key Security: Class 5 (10 pins, 100,000 combinations)


• Material Body: Brass


• Material Pins/Drivers: Bronze and hardened steel


• Finish: Pearl nickel


• Function: Emergency clutch (safe key operation)


• Patented Anti-picking System: Yes


• Length: 40 mm / 45 mm


• Warranty: 5 years


• Accessories: 5 drilled keys, code card, screw

Applications

Used in mortise locks for residential apartment doors, commercial facilities, and office properties requiring high-security access. Suitable for bulk procurement in projects demanding anti-burglary certification, advanced anti-picking protection, and corrosion resistance. Compatible with keyed-alike master key systems for integrated access control.

Packaging & Shipping

Each cylinder lock is packaged in a sealed box including 5 drilled keys, a code card, fixing screw, and installation instructions. Plombed packaging ensures product integrity for security compliance. Bulk shipping options available for B2B orders.
