Abus KD10 40g/45 Cylinder Lock Brass PN-EN 1303:2007 Emergency Knob Class 5 Security

Product Overview

The Abus KD10 40g/45 brass cylinder lock with knob is a high-security anti-burglary insert certified to PN-EN 1303:2007, ensuring compliance with European standards for cylinder durability, corrosion resistance, and attack resistance. It is used in all types of mortise locks for residential and commercial premises, designed for environments where security is a primary requirement. The insert withstands at least 50,000 cycles, provides class 5 key security (10 pins, 100,000 combinations), and operates reliably from -20°C to +80°C.

This model is distinguished by its emergency coupling feature, allowing the cylinder to be operated from one side even if a key is inserted in the opposite side. This eliminates lock-out risks in multi-user or facility access scenarios, offering significant peace of mind to property managers and facility operators. It is particularly suited for bulk procurement in residential complexes or commercial premises requiring both high security and user convenience.

Key Features

• Emergency coupling function ? enables operation with a key inserted on the opposite side, prevents lock-outs


• Class 5 key security ? 10 pins in 2 rows, 100,000 combinations, high resistance to unauthorized key duplication


• Pre-snap protection ? internal mechanism resists breaking of the cylinder under physical attack


• Anti-drill protection ? hardened steel elements safeguard against drilling attempts


• Corrosion resistance class C ? reliable operation from -20°C to +80°C for harsh environments


• Attack resistance class 2 ? withstands minimum 5/10 minutes, 40 impacts; class C according to KW/WQ-02


• Patented anti-picking system ? specialized pins and counter-pins enhance pick resistance for expert-level security

Technical Specifications

• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Corrosion Resistance: Class C (operating temperature -20°C to +80°C)


• Durability: ? 50,000 cycles


• Key Security: Class 5 (10 pins, 100,000 combinations)


• Attack Resistance: Class 2 (min. 5/10 min, 40 impacts), Class C KW/WQ-02


• Material: Brass body; bronze and hardened steel pins and counter-pins; steel cam; stainless steel springs


• Knob: Integrated


• Number of Keys Included: 5


• Warranty: 5 years

Applications

Used in mortise locks fitted in residential and commercial door assemblies, particularly where enhanced security and access flexibility are required. Suitable for facility doors, apartment blocks, offices, and environments demanding both high resistance to forced entry and emergency access. Compatible with scenarios requiring lock cylinders with emergency function and advanced anti-picking technologies.

Packaging & Shipping

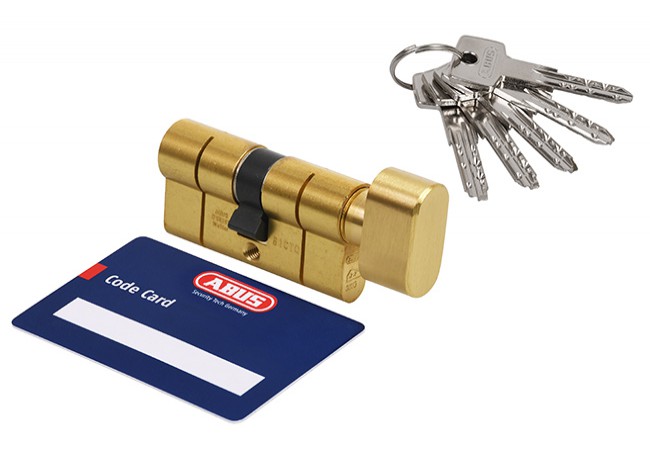

Each unit is securely packaged in a tamper-evident box, including the cylinder, 5 drilled keys, code card, mounting screw, and user manual. Bulk shipments are available for OEM and project orders, ensuring full product integrity.
