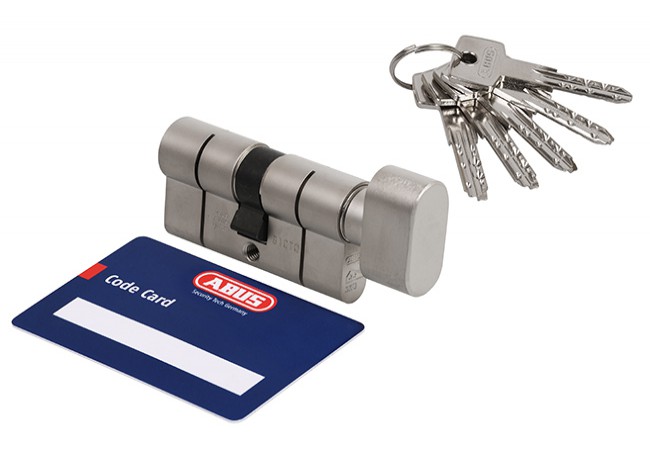

Abus KD10 40g/55 Cylinder Lock Nickel Pearl Class 5.2 Pre-snap EN 1303

Product Overview

Abus KD10 40g/55 nickel pearl cylinder lock is an anti-burglary security insert featuring emergency function and certified to PN-EN 1303:2007. It is engineered for use with mortise locks in high-security commercial, institutional, and residential door systems, operating reliably from -20°C to +80°C with corrosion resistance rated at class C. The KD10 achieves minimum durability of 50,000 cycles, includes 10-pin dual row keying, and offers high attack resistance in accordance with class 2 protocols.

The built-in pre-snap mechanism distinguishes the KD10 by providing active protection against cylinder break-ins, minimizing procurement risks related to forced entry standards and regulatory compliance. This feature makes it particularly suited for security upgrades in multi-unit residential complexes and bulk procurement for commercial property management where tested anti-burglary hardware is required.

Key Features

• Emergency function clutch ? key turns on both sides simultaneously for access in locked situations


• Pre-snap break protection ? prevents cylinder breakage during attempted burglary


• 10-pin dual row system ? class 5 key security with 100,000 combinations


• Drill resistance ? bronze and hardened steel pins/anti-drill elements


• Class 2 attack resistance ? withstands minimum 40 impacts, 5-10 minutes forced entry attempts


• Corrosion resistance ? certified class C, operates from -20°C to +80°C


• Patented anti-picking system ? advanced pins and counter-pins for enhanced pick resistance

Technical Specifications

• Cylinder Length: 40 mm/55 mm


• Finish: Nickel pearl


• Material: Brass body, bronze and hardened steel pins, stainless steel springs


• Key Security: Class 5 (10 pins, 100,000 combinations)


• Cycle Durability: ?50,000 cycles


• Attack Resistance: Class 2 (?40 hits, 5-10 min)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Certifications: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Warranty: 5 years


• Accessories: 5 drilled keys, code card, fixing screw

Applications

Used in mortise locks for apartment buildings, office complexes, institutional doors, rental properties, and commercial spaces requiring certified anti-burglary protection. Suited for security upgrades, bulk procurement for property management, and doors needing emergency function (double-sided access) and class 2 forced entry resistance. Conforms to PN-EN 1303:2007 for regulated installations.

Packaging & Shipping

Each cylinder lock is packed in a sealed, tamper-proof box including 5 drilled keys, code card, fixing screw, and installation instructions. Packaging ensures integrity for certified security hardware. Bulk shipment available for large-scale projects.
