Abus KD10 45g/30 Cylinder Lock Brass Security Clutch Euro Profile Class C

Product Overview

The Abus KD10 45g/30 brass cylinder lock with knob is an anti-burglary euro profile cylinder designed for use with all mortice locks in residential and commercial environments. Certified to PN-EN 1303: 2007 and rated Class C for corrosion resistance, it operates reliably from -20°C to +80°C and endures at least 50,000 cycles. The body is constructed from brass, with bronze and hardened steel pins, providing substantial durability in high-traffic installations.

A distinguishing feature of this model is its security clutch (emergency function), enabling operation from either side even when a key is inserted on the opposite side. This function is valued by facility managers and large-scale residential projects, as it simplifies access control without risking lockout scenarios. Particularly suited for bulk procurement in multifamily residential, office, and institutional security installations requiring keyed-alike options and premium anti-picking protection.

Key Features

• Security clutch function ? cylinder can be operated from either side even if a key is inserted on the other; prevents lockout


• High key control ? system uses 10 pins in two rows and offers over 100,000 key combinations


• Pre-snap design ? integrated protection against cylinder breaking in attack scenarios


• Anti-drill protection ? features bronze and hardened steel pins for resistance to drilling


• Anti-picking mechanism ? patented pin and counterpin technology verified for effective anti-manipulation


• Corrosion resistance Class C ? maintains full function from -20°C to +80°C in harsh conditions


• Durability ? tested for minimum 50,000 opening/closing cycles

Technical Specifications

• Cylinder Length: 45 mm/30 mm


• Body Material: Brass


• Pin Material: Bronze and hardened steel


• Springs: Stainless steel


• Key Combinations: ?100,000


• Pin Count: 10 (two rows)


• Certification: PN-EN 1303: 2007 1 5 0 0 0 C 5 2 C


• Corrosion Resistance: Class C (-20°C to +80°C)


• Attack Resistance: Class 2 (at least 5/10 minutes, 40 impacts)


• Key Security: Class 5


• Function: Security clutch (emergency function)


• Cycles Durability: ?50,000 cycles


• Warranty: 5 years


• Included Keys: 5 drilled keys

Applications

Deployed in residential apartment buildings, multifamily housing, offices, and institutional facilities where high security standards are required. Suitable for entrance doors, interior compartments, and installations demanding emergency access (security clutch). Supports fire door installations if compliant with mortice lock specifications. Particularly used in bulk installations and projects requiring anti-manipulation and anti-break features.

Packaging & Shipping

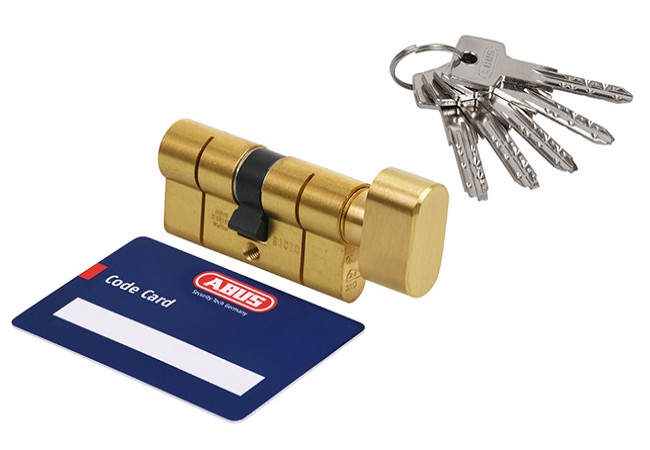

Each unit is packaged in a sealed tamper-evident box containing the cylinder, knob, five drilled keys, coding card, mounting screw, and installation instructions. Secure packaging ensures product integrity for audited and bulk procurement shipments.
