Abus KD10 45g/30 Euro Cylinder Lock Pearl Nickel EN 1303 Emergency Clutch

Product Overview

The Abus KD10 45g/30 pearl nickel double cylinder insert with knob is an anti-burglary euro profile cylinder designed for high-security door installations in both residential and commercial buildings. Certified to PN-EN 1303:2007 with a durability rating of at least 50,000 cycles and corrosion resistance class C (-20°C to +80°C), it ensures reliable function under demanding conditions. The unit features a brass body and hardened steel components, supporting compatibility with all standard mortise locks.

Its emergency function clutch allows locking and unlocking from the outside even when a key remains inserted on the inside, which prevents lockouts and meets advanced facility access requirements. This feature makes it highly recommended for multi-user buildings, hotels, office spaces, and properties requiring controlled access and maximum security without operational risk.

Key Features

• Emergency clutch function ? enables operation from one side even if a key is inserted on the other, eliminating lockout risk


• Anti-snap pre-snap feature ? dedicated break zone protects against cylinder breaking attacks


• 10 tumbler system in 2 rows ? key security class 5 with 100,000 unique combinations


• Anti-drill protection ? hardened components and patented anti-picking system ensure resistance to forced entry


• Certified to PN-EN 1303:2007 ? meets European standards for durability, corrosion resistance, and attack resistance


• Corrosion resistance class C ? fully operational from -20°C to +80°C for indoor and outdoor settings


• Tested for at least 50,000 operating cycles ? proven long-term service life

Technical Specifications

• Cylinder Size: 45g/30


• Material: Brass body, bronze and hardened steel pins, stainless steel springs, steel driver


• Finish: Pearl nickel


• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Durability: ?50,000 cycles


• Key Security Class: 5 (10 tumblers, 2 rows, 100,000 combinations)


• Attack Resistance: Class 2 (min. 5/10 minutes, 40 blows), Class C to KW/WQ-02


• Corrosion Resistance: Class C (-20°C to +80°C)


• Number of Keys: 5 (drilled profile)


• Warranty: 5 years

Applications

Used in high-security entrance doors of residential, commercial, multi-tenant, hotel, and office buildings. Suitable for all mortise lock types requiring euro profile cylinders. Recommended for fire escape routes, access-controlled doors, and facilities that require emergency unlocking features and resistance against drilling, snapping, and picking attacks.

Packaging & Shipping

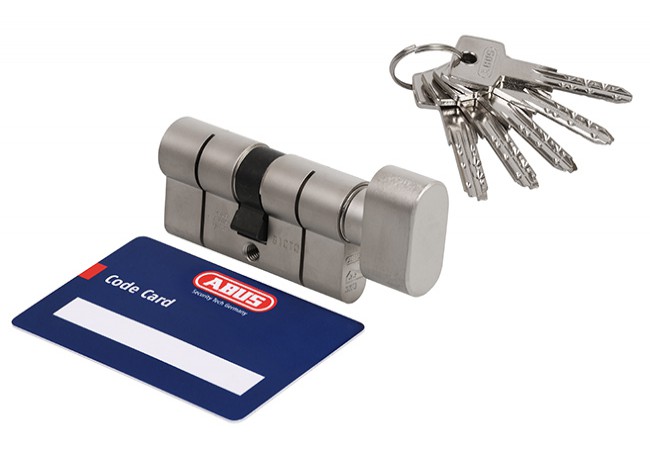

Each cylinder is supplied in a sealed, tamper-evident box including five dimple keys, a code card, a fixing screw, and an instruction manual. Packaging ensures product integrity for secure delivery and compliance with high security standards.
