Abus KD10 45g/35 Cylinder Lock Brass Emergency Function PN-EN 1303 Class 5 Security

Product Overview

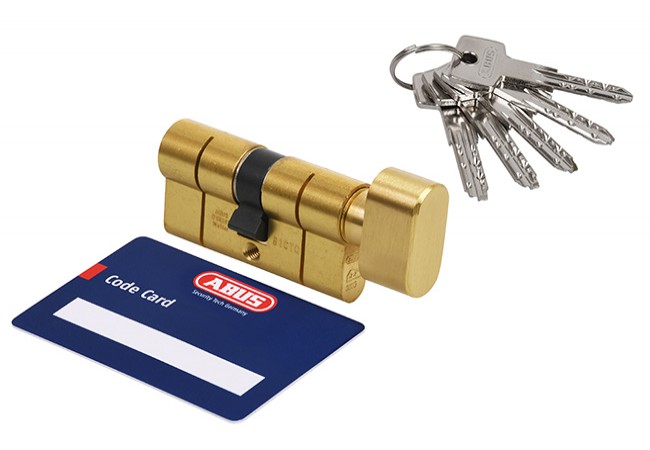

The Abus KD10 45g/35 brass cylinder lock is used in mortise locks for secure access control in residential and commercial settings. It is certified to PN-EN 1303:2007, achieving durability of at least 50,000 cycles, class 5 key security, class 2 attack resistance, and class C corrosion resistance from -20°C to +80°C. The unit comes with a key-operated knob, offering flexible operation from both sides.

A highlight of this model is its emergency function (safe coupling), which allows the lock to turn even when a key is inserted on the opposite side. This eliminates the risk of lockout in multi-user or high-traffic environments, and is particularly recommended for facility management in offices, hotels, and apartment blocks where security and user access continuity are required.

Key Features

• PN-EN 1303:2007 certified ? high security and durability standards for commercial procurement


• Emergency function ? safe coupling allows operation even if a key is left inside


• Pre-snap protection ? integrated mechanism prevents cylinder breakage during forced entry attempts


• 10 tumbler system ? ensures class 5 key security with 100,000 combinations


• Anti-picking mechanism ? patented pins and driver pins stop manipulation attacks


• Corrosion resistance class C ? operates reliably from -20°C to +80°C


• 5 drilled keys included ? each cylinder supplied with matching code card, keys, mounting screw

Technical Specifications

• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Key Security: Class 5 (10 tumblers, 100,000 combinations)


• Attack Resistance: Class 2 (minimum 5/10 min, 40 blows), Class C KW/WQ-02


• Corrosion Resistance: Class C (from -20°C to +80°C)


• Durability: Minimum 50,000 cycles


• Material: Brass body, bronze and hardened steel pins, stainless steel springs


• Function: Emergency/safe coupling (turns with key inserted on opposite side)


• Keys: 5 drilled keys per cylinder


• Guarantee: 5 years

Applications

Used in mortise locks installed in residential blocks, offices, hotels, and commercial properties where certified security and anti-manipulation features are required. Suitable for facility managed venues, high-traffic areas, and doors needing emergency access. Compatible with fire-resistant and high-security doors.

Packaging & Shipping

Secure, sealed packaging with cylinder, 5 drilled keys, code card, mounting screw, and installation instructions. Tamper-evident boxes ensure product integrity for regulated procurement and warranty validation.
