Abus KD10 50g/30 Euro Cylinder Lock Brass Knob Pre-Snap Break Protection EN 1303

Product Overview

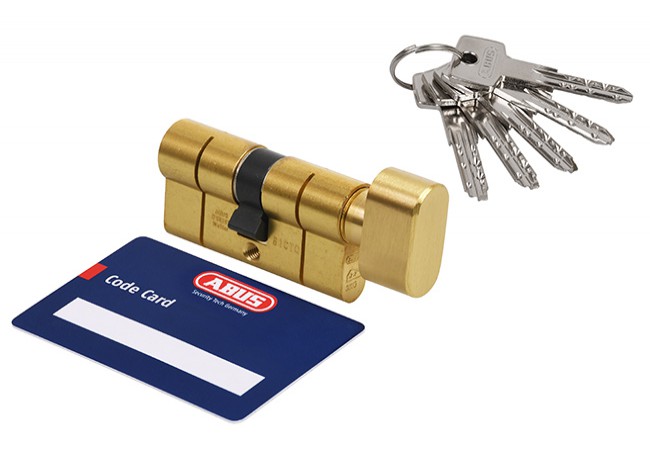

Abus KD10 50g/30 brass cylinder lock with knob is a high-security euro profile cylinder designed for use in commercial and residential door systems equipped with mortise locks. It is certified to PN-EN 1303:2007, ensuring resistance to burglary, corrosion, and wear according to European standards. The cylinder performs reliably through at least 50,000 cycles and is rated class C for corrosion resistance (-20°C to +80°C).

Its pre-snap break protection feature greatly distinguishes this SKU, significantly reducing the risk of forced entry by protecting against cylinder snapping attacks. This feature fulfills strict security requirements for doors in retail, office, or public access areas, making the KD10 50g/30 with knob particularly suited for bulk installation in high-traffic commercial properties and security-sensitive residential projects.

Key Features

• Pre-snap break protection ? integrated mechanism prevents cylinder snapping during forced entry


• Emergency function (dual-side operation) ? allows turning the cylinder even if a key is inserted on the opposite side


• 10-pin system with 2 rows ? offers 100,000 key combinations for advanced security


• Anti-pick patented system ? precision anti-picking pins and counter-pins inhibit lock manipulation


• Corrosion resistance class C ? functions reliably from -20°C to +80°C in harsh environments


• Attack resistance class 2 (class C per KW/WQ-02) ? withstands brute force for min. 5/10 minutes, 40 strikes


• Certified durability ? tested for at least 50,000 operating cycles to minimize maintenance risk

Technical Specifications

• Cylinder Dimensions: 50 mm (door side) / 30 mm (knob side)


• Material: Brass cylinder body, bronze and hardened steel pins, stainless steel springs


• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Key Security Class: 5 (10 pins, 100,000 combinations)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Attack Resistance: Class 2 (min. 5/10 min, 40 strikes)


• Warranty: 5 years


• Included Keys: 5 drilled keys


• Included Accessories: Security code card, fixing screw

Applications

Used in commercial offices, retail stores, apartment complexes, and public buildings with mortise lock systems. Engineered for high-security entries, fire exit doors, and main access points requiring anti-burglary certified cylinders. Suitable for installations covering bulk procurement, security upgrades, and OEM projects needing compliance with EN 1303 and advanced anti-snap requirements.

Packaging & Shipping

Standard export packaging in sealed tamper-evident boxes. Each unit includes cylinder body, knob, 5 drilled keys, security code card, fixing screw, and installation manual. Bulk shipments available for project procurement.
