Abus KD10 50g/45 Euro Cylinder Lock Brass Security Clutch PN-EN 1303:2007 Knob

Product Overview

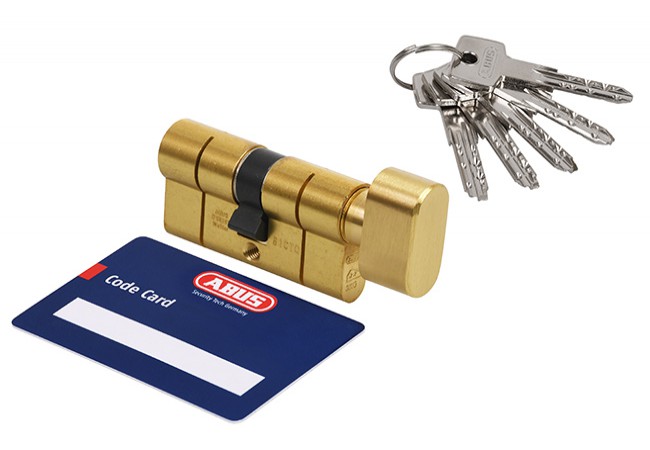

The Abus KD10 50g/45 brass euro cylinder lock with knob is an anti-burglary cylinder designed for use with all mortise locks in commercial and residential doors. It carries the PN-EN 1303:2007 certification at the highest attack resistance (class 2) and corrosion resistance (class C), making it suitable for high-traffic environments requiring certified security components. The cylinder is rated for at least 50,000 operating cycles, and functions effectively between -20°C and +80°C.

The key differentiator for this model is the security clutch (emergency function), allowing the cylinder to be operated from one side even if a key is inserted on the opposite side. This addresses safety risks in hotels, offices, or apartment buildings, where emergency access is critical and lockouts must be prevented. The product is especially well-suited for facility managers and project procurement in multi-unit residential or commercial installations with high security requirements.

Key Features

• Security clutch (emergency function) ? cylinder can be turned from one side even if the key is inserted on the other


• 10-pin system in two rows ? ensures class 5 key security with over 100,000 possible combinations


• Anti-drill protection ? uses hardened steel and bronze components to resist drilling attacks


• Pre-snap feature ? break-secure design prevents full compromise of the locking mechanism upon attack


• Anti-picking patent ? specially sized pins and counter-pins for increased resistance to manipulation


• Certified to PN-EN 1303:2007, class 2 (attack resistance) ? withstands at least 40 impact attacks for a minimum of 5/10 minutes


• Corrosion resistance class C ? maintains full functionality from -20°C to +80°C

Technical Specifications

• Cylinder Length: 50 mm (outside) / 45 mm (inside)


• Material: Brass body, hardened steel and bronze pins, steel cam, stainless steel springs


• Operating Cycle Life: ?50,000 cycles


• Key Security Class: 5 (10 pins, >100,000 combinations)


• Attack Resistance: Class 2 (min. 5/10 min, 40 impacts)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Standard: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Warranty: 5 years


• Keys Included: 5 (dimple type)

Applications

Used in commercial, institutional, and high-end residential buildings where high-security, anti-burglary cylinders are required. Appropriate for doors with mortise locks, especially in hotels, offices, public buildings, and multi-family dwellings where certified emergency function and high keying options are essential. Suitable for fire doors and access control retrofits where key management and tamper resistance are priorities.

Packaging & Shipping

Each cylinder is factory-sealed in an individual tamper-evident box, including 5 dimple keys, fixing screw, code card, and installation manual. Packaging ensures all parts remain secure and undamaged during shipping.
