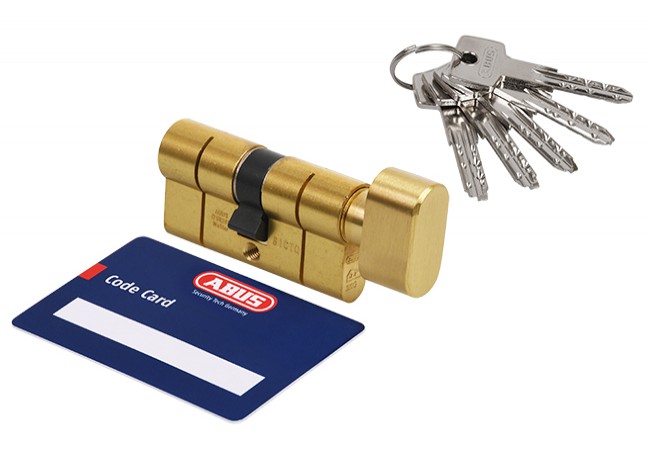

Abus KD10 cylinder insert 30g/50 brass with knob class 5.2, 5 keys

High-security anti-burglary cylinder with a safe clutch (emergency function) designed for all mortise locks.

• Certified to PN-EN 1303: 2007 1 5 0 0 0 C 5 2 C


• Durability: at least 50,000 cycles


• Key security class 5 (10 pins, 100,000 combinations)
• Pre-snap function ? protection against cylinder breakage
• Protection against drilling


• Attack resistance class 2 (highest: min. 5/10 minutes, 40 impacts), class C according to KW/WQ-02


• Corrosion resistance: class C (highest ? corrosion-resistant from -20°C to +80°C)


• Standard safety function ? the cylinder can be turned even with a key inserted from the opposite side


• A vast number of key combinations thanks to a system of 10 pins arranged in 2 rows


• Additionally, a special anti-picking system patented by Abus has been implemented ? experts confirm exceptional effectiveness thanks to precisely sized pins and counter-pins


• High precision manufacturing and longevity are ensured by the use of very high-quality materials


• Cylinder body made of brass, pins and counter-pins made of bronze and hardened steel, plunger made of steel, stainless steel springs


• Includes 5 drilled keys, a code card, a screw, and elegant packaging


• 5-year manufacturer's warranty


• Cylinders in a single-key system available on request

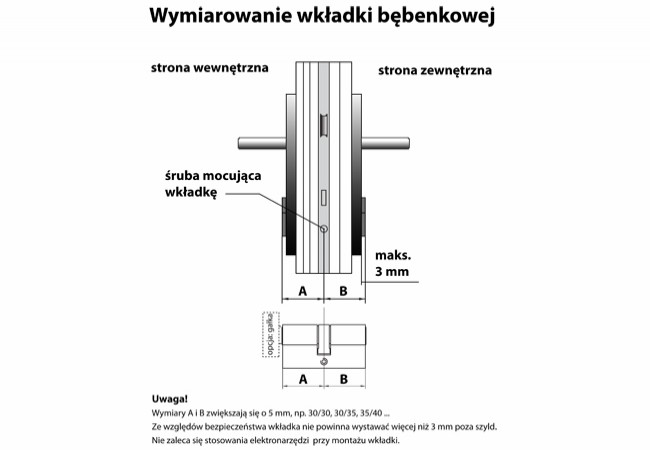

How to choose the right cylinder size?

Watch the video below.

Valued Customers, please make thoughtful purchases

We care about your satisfaction and high safety standards, therefore all certified barrel cylinders are packaged in sealed boxes, guaranteeing their undamaged condition and full functionality.

Due to the product's nature, we inform you that we cannot accept returns of opened or damaged packaging, as we cannot re-introduce such products to the market.

Please carefully check the technical specifications and precisely measure your door dimensions before purchasing. If you have any questions or concerns, our team is at your disposal and will gladly assist you in choosing the right product.

Thank you for your understanding and we invite you to explore our offer.
