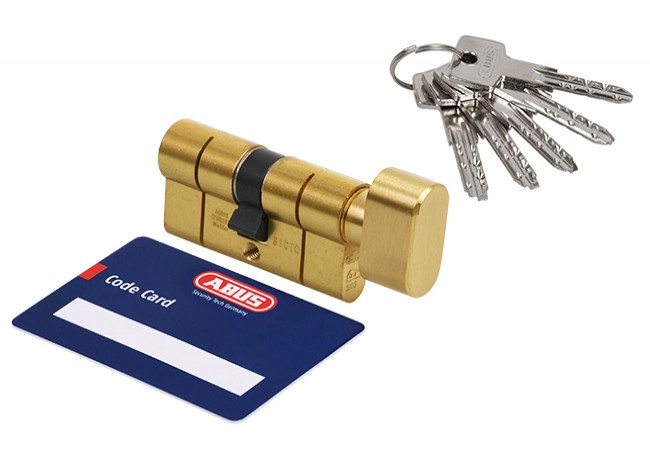

Abus KD10 cylinder insert 45g/40 brass with knob class 5.2, 5 keys

High-security anti-burglary cylinder with a secure clutch (emergency function) designed for use with all mortise locks.

• Certified to PN-EN 1303: 2007 1 5 0 0 0 C 5 2 C


• Durability: at least 50,000 cycles


• Key security class 5 (10 pins, 100,000 combinations)
• Pre-snap function ? protection against cylinder breakage
• Protection against drilling


• Attack resistance class 2 (highest: min. 5/10 minutes, 40 impacts), class C according to KW/WQ-02


• Corrosion resistance: class C (highest - corrosion resistant from -20°C to +80°C)


• Cylinder with standard security function ? the cylinder can be turned even with a key inserted from the opposite side


• Very high number of key combinations thanks to a system of 10 pins arranged in 2 rows


• Additionally, a special anti-picking system patented by Abus has been used ? experts confirm exceptional effectiveness thanks to precisely sized pins and counter-pins


• High precision manufacturing and longevity are ensured by the use of very high-quality materials


• Cylinder body made of brass, pins and counter-pins made of bronze and hardened steel, driver made of steel, stainless steel springs


• Includes 5 drilled keys, code card, screw, and aesthetically pleasing packaging


• 5-year manufacturer's warranty


• Cylinders in a single-key system available on request

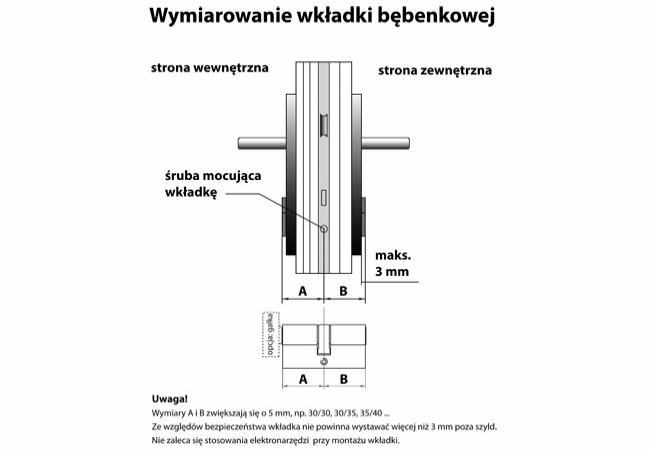

How to choose the right cylinder size?

Watch the video below.

Valued Customers, please make informed purchases

We care about your satisfaction with your purchases and high safety standards, therefore all certified pin tumbler cylinders are packaged in sealed boxes, guaranteeing their undamaged condition and full functionality.

Due to the specific nature of the product, we inform you that we cannot accept returns of opened or damaged packaging, as we cannot reintroduce such products back into sale.

Please carefully check the technical specifications and precisely measure your door dimensions before making a purchase. If you have any questions or doubts, our team is at your disposal and will gladly assist you in choosing the right product.

Thank you for your understanding and we invite you to browse our offer.
