Abus Pfaffenhain Standard 30/35 Cylinder Lock Nickel Pearl Class 6 Emergency Clutch EN 1303

Product Overview

The Abus Pfaffenhain Standard 30/35 cylinder lock is a high-security nickel pearl-finish euro profile designed for use in residential, commercial, and institutional environments requiring certified protection. It holds PN-EN 1303:2015-07 and PN-EN 1303:2009 certifications, achieves security class 6 with 100,000 key combinations, and is approved for installation in fire-rated and smoke-control doors. Its robust construction delivers high resistance to corrosion and extreme temperatures, class C.

The emergency clutch feature allows the cylinder to operate even if a key is inserted on both sides, minimizing access issues during emergencies or maintenance. This functional advantage especially benefits facility managers and bulk procurement in multi-unit properties or healthcare installations, where uninterrupted access is critical to operational safety and compliance.

Key Features

• Emergency clutch function ? enables cylinder rotation with keys inserted on both sides for uninterrupted access


• Certified security ? PN-EN 1303:2015-07, PN-EN 1303:2009, class 6 protection, 100,000 key combinations


• Fire- and smoke-door approval ? suitable for installation in doors requiring certified fire and smoke resistance


• Corrosion and temperature resistant ? achieves class C for extreme durability in challenging environments


• Pick resistance ? multi-centered, non-symmetrical profiles prevent manipulation and unauthorized opening


• Drill protection ? hardened steel pins and special core and housing reinforcements guard against drilling


• Master key compatible ? 14 mm core accommodates complex master key system integrations

Technical Specifications

• Length: 30/35 mm


• Finish: Nickel pearl


• Pin Count: 6 (security class 6)


• Key Combinations: 100,000


• Certification: PN-EN 1303:2015-07


• Certification: PN-EN 1303:2009


• Core Diameter: 14 mm


• Fire Door Compatibility: Yes


• Smoke Door Compatibility: Yes


• Corrosion Resistance: Class C


• Emergency Function: Yes (clutch function)


• Drill Protection: Hardened steel pins, reinforced housing

Applications

Used in residential, office, hotel, healthcare, and public building doors requiring certified security and fire/smoke protection. Suitable for fire-rated and smoke-control doors, barrier-free access points, and multi-unit installations needing master key systems. Recommended for bulk specification in commercial real estate, hospitals, and institutional property management.

Packaging & Shipping

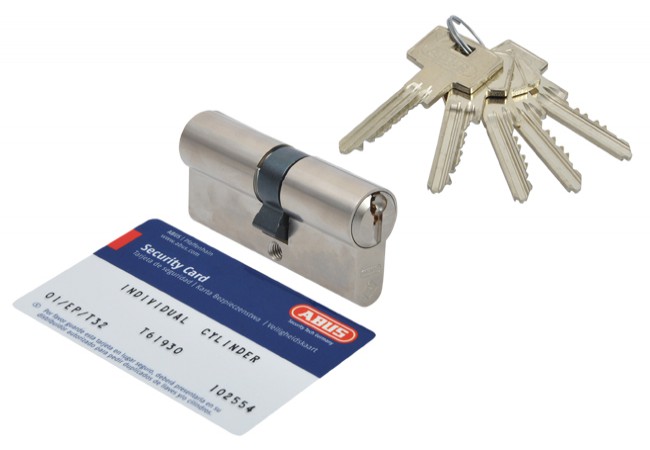

Supplied in sealed, tamper-evident packaging. Each unit includes the cylinder, 5 dimple keys, a key code card, and fixing screw. Export cartons are securely boxed for bulk orders, ensuring product integrity during shipment.
