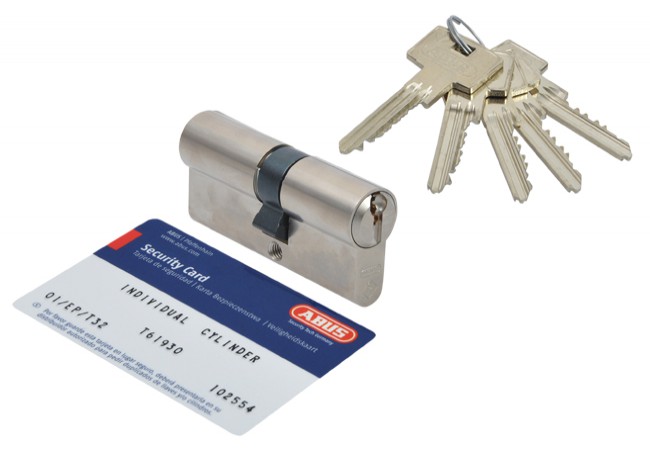

Abus Pfaffenhain Standard 35/45 Euro Cylinder Class 6.2 C Pearl Nickel Emergency Function

Product Overview

The Abus Pfaffenhain Standard 35/45 Cylinder is a high-security euro profile cylinder, intended for use in entrance doors where advanced mechanical protection is required. Certified to PN-EN 1303:2015-07 with class 6.2 C ratings for key security, resistance to attack, and corrosion, it is suitable for installation in fire-resistant and smoke-control doors in both residential and commercial premises. The pearl nickel finish provides durability under demanding conditions and ensures compatibility with modern architectural aesthetics.

A key differentiator of this cylinder is the emergency function (secure clutch), allowing operation even when a key is inserted on both sides, which eliminates lockout risks and increases safety for occupants. This feature makes it especially well-suited for multi-unit residential developments, hotels, and commercial buildings requiring continuous accessibility and compliance with emergency egress codes.

Key Features

• Emergency function clutch ? cylinder operable from both sides even if a key is inserted, increasing occupant safety


• Certified to PN-EN 1303:2015-07, class 6.2 C ? meets strict European standards for key security, attack resistance, and environmental durability


• Six tumbler pins, 100,000 key differs ? provides high protection against unauthorized duplication and manipulation


• Hardened steel pins in positions 1 and 3 ? enhances core drilling resistance


• Multiple offset asymmetric profiles ? protects against picking and bumping


• Fire and smoke door approved ? compatible with fire-rated door assemblies


• Corrosion resistance class C ? suitable for environments with high humidity or temperature variations

Technical Specifications

• Length: 35/45 mm


• Profile: Euro profile cylinder


• Finish: Pearl nickel


• Certification: PN-EN 1303:2015-07 (class 6.2 C)


• Key security class: 6


• Attack resistance class: B (5/10 min drill resistance)


• Corrosion resistance class: C


• Number of pins: 6


• Core diameter: 14 mm


• Number of keys: 5 (milled)


• Key material: New silver alloy (paracentric profile)


• Drilling protection: Hardened steel pins (positions 1 and 3)


• Master key system capability: Yes

Applications

Designed for use in residential and commercial security doors, including main entrances, multi-tenant buildings, hotels, and institutional facilities. Certified for fire and smoke control door assemblies, making it suitable for installation where compliance with safety codes is required. Recommended for procurement in projects demanding high key security, emergency access, and resistance to forced entry methods.

Packaging & Shipping

Each cylinder is supplied in factory-sealed packaging with 5 milled keys, a code card, mounting screw, and documentation. Tamper-proof boxes ensure the product remains untampered during transport and storage; bulk packaging for large orders is available upon request.
