Abus Pfaffenhain Standard 35g/30 Euro Cylinder Thumbturn Class 6.2 C Satin Nickel

Product Overview

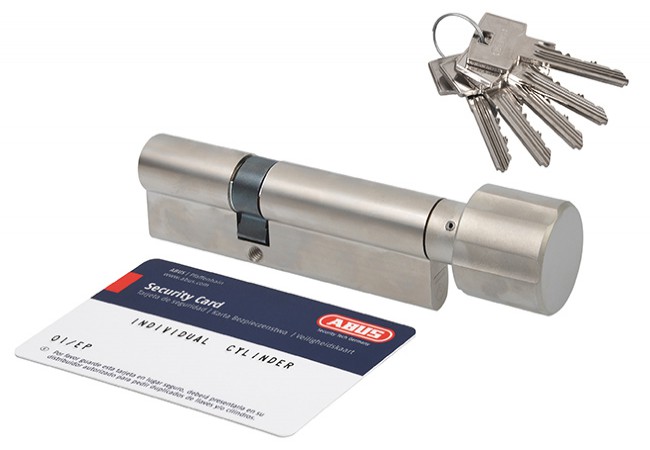

The Abus Pfaffenhain Standard 35g/30 is a certified euro-profile cylinder lock with a satin nickel finish, featuring an integrated thumbturn (gałka) and supplied with five dimple keys. Designed for professional use in commercial and high-security residential properties, this cylinder is tested to Polish and European standard PN-EN 1303: 2015-07, achieving class 6.2 C for key security, mechanical durability, and corrosion resistance, and is approved for fire-rated and smoke-control doors.

Its emergency coupling function (safe clutch) allows the cylinder to be operated from one side even if a key is inserted on the other, solving common access issues in multi-occupancy or emergency-exit scenarios. This feature is especially valuable for facility managers and OEM projects in public buildings, hotels, and residential complexes requiring compliance, flexibility, and high resistance to forced entry attempts.

Key Features

• Certified to PN-EN 1303:2015-07 ? key security class 6 (6-pin, 100,000 combinations), mechanical strength class 2, attack resistance class B, corrosion resistance class C


• Emergency coupling (safe clutch) ? allows cylinder operation with keys inserted on both sides for emergency egress


• Multiple anti-drill protections ? hardened steel pins in core and anti-drill shield in body


• Dimple key system ? 5 high-durability paracentric profile keys for increased security and copy protection


• Compatible with fire-rated and smoke-control doors ? safety tested for regulated environments


• Core diameter 14 mm ? supports advanced master keying configurations for complex facilities


• Satin nickel (nikiel perłowy) finish ? durable, corrosion-resistant surface for long service life

Technical Specifications

• Cylinder Length: 35/30 mm (outside/inside)


• Operation: Single thumbturn (gałka) + key both sides


• Certification: PN-EN 1303:2015-07 1 6 0 B 0 C 6 B


• Key Security: Class 6 (100,000 combinations, 6 pins)


• Attack Resistance: Class B (5/10 min drill resistance, anti-mechanical attack, no extraction resistance)


• Corrosion Resistance: Class C (highest)


• Core Diameter: 14 mm


• Keys Included: 5 dimple (paracentric profile)


• Material: Hardened steel components, new silver alloy keys


• Finish: Satin nickel (nikiel perłowy)


• Fire/Smoke Door Approval: Yes

Applications

Used in commercial and residential buildings for entrance doors, office doors, and managed access systems, especially where fire-rated or smoke-control doors are required. Suitable for multi-user properties, hospitality, and facility management projects needing certified high-security cylinders with master keying options. Compatible with emergency exit requirements due to clutch function.

Packaging & Shipping

Each cylinder is supplied in a tamper-evident box containing five dimple keys, a code card, fixing screw, and installation instructions. Packaging ensures unbroken product integrity and traceability for professional procurement and installation.
