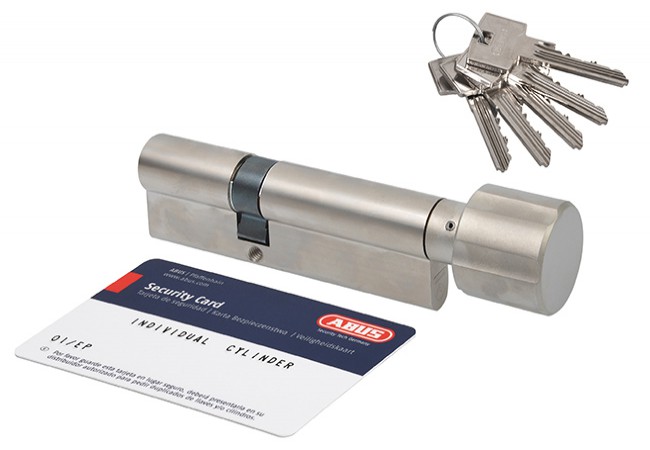

Abus Pfaffenhain Standard 40g/40 Cylinder Lock Nickel Pearl Class 6 EN 1303 Emergency Clutch

Product Overview

The Abus Pfaffenhain Standard 40g/40 nickel pearl cylinder lock is a certified security component for door access control in fire-rated and smoke-control doors, meeting PN-EN 1303:2015-07 security standards. Its use is prominent in commercial, institutional, and residential projects requiring Class 6 key security, high drilling resistance, and durable corrosion protection. Designed for installations in demanding environments, it features emergency clutch functionality (dual access with keys from both sides).

The feature that sets this cylinder apart is its highest Class 6 rating for key security, offering up to 100,000 locking combinations and multi-centered asymmetric profiles. This minimizes the risk of unauthorized access and satisfies stringent specification requirements for B2B buyers handling large facility or multi-residential security systems. Recommended for security-sensitive projects, specification-driven procurement, and master key system architectures in hotels, offices, and public buildings.

Key Features

• Emergency clutch function ? enables lock operation from both sides even with keys inserted, improving access control in urgent situations


• Class 6 key security ? six pin tumblers with up to 100,000 combinations for enhanced protection


• Certified PN-EN 1303:2015-07 ? approved for use in fire-resistant and smoke-control doors


• Multi-centered asymmetric profiles ? resist picking and unauthorized manipulation


• Hardened steel pins ? first and third pins made from hardened steel to increase drill resistance


• Corrosion resistance class C ? suited for harsh environmental conditions


• Durable key design ? made from 'new silver' alloy with paracentric profile for longevity

Technical Specifications

• Cylinder Length: 40 mm/40 mm


• Finish: Nickel pearl


• Key Security Class: 6


• Number of Pins: 6


• Locking Combinations: 100,000


• Attack Resistance Class: B


• Corrosion Resistance: Class C


• Certification: PN-EN 1303:2015-07


• Fire/Safety Compatibility: Suitable for fire-rated and smoke-control doors


• Core Diameter: 14 mm


• Number of Keys: 5 (included)


• Master Key Compatibility: Yes

Applications

Suitable for installation in fire-rated and smoke-control doors within hotels, office buildings, multi-family residential units, and institutional facilities. Used in security installations requiring high-key security, drill resistance, and robust protection against corrosion. Compatible with master key systems and recommended for bulk procurement in project-driven environments such as facility management and OEM security hardware supply.

Packaging & Shipping

Each cylinder lock is individually sealed in an aesthetic box with tamper-proof packaging, containing 5 cut keys, a code card, mounting screw, and installation instructions. No returns are accepted for opened packages due to security regulations.
