Abus Pfaffenhain Standard 40g/55 Euro Cylinder Lock Class 6.2 C Nickel Pearl Knob

Product Overview

The Abus Pfaffenhain Standard 40g/55 Nickel Pearl Cylinder with Knob is a certified euro profile cylinder lock, rated in accordance with PN-EN 1303:2015-07 class 6.2 C, designed for high-security applications in residential or commercial doors, including fire-rated and smoke-proof assemblies. Supplied with 5 dimple keys and a code card, it incorporates a high-security clutch mechanism (emergency function) allowing operation from both sides simultaneously, a critical safety feature in multi-user buildings or emergency exit scenarios.

The standout feature of this model is its class C corrosion and temperature resistance, the highest available, ensuring dependable performance in harsh environments and exterior doors. This maximizes security continuity and reduces maintenance risks in demanding installations. The product is particularly well-suited for high-security access points in fire-rated building sectors, such as public facilities, offices, and multi-tenant residential properties requiring master key compatibility and strict safety compliance.

Key Features

• Certified PN-EN 1303:2015-07 class 6.2 C ? meets strict security and durability requirements for professional applications


• Emergency function ? safe clutch allows opening even with a key inserted on the opposite side


• 6 tumbler system ? up to 100,000 key combinations for increased security


• Attack resistance class B ? 5/10 min drilling and mechanical protection; hardened steel pins in positions 1 and 3


• High corrosion and temperature resistance ? class C for harsh or outdoor conditions


• Master key system compatible ? 14 mm core supports complex keying hierarchies


• Supplied with 5 nickel silver dimple keys ? durable for high-frequency use

Technical Specifications

• Cylinder Length: 40g/55 mm (40 mm with knob, 55 mm standard side)


• Certification: PN-EN 1303:2015-07 class 6.2 C


• Drill Resistance: Class B (5/10 min), hardened steel pins 1 and 3


• Corrosion/Temperature Class: C (highest)


• Core Diameter: 14 mm


• Number of Tumblers: 6


• Key Profile: Paracentric, nickel silver, dimple (5 pcs included)


• Emergency Function: Safe clutch operation


• Compatible Doors: Fire-rated, smoke-control


• Attack Resistance: Class B

Applications

Designed for use in residential, commercial, and institutional buildings where high security, fire safety, and mechanical attack resistance are required. Specifically suited to fire-rated and smoke-control doors, access points in public institutions, offices, hotels, and multi-apartment units. Master key system compatibility makes it suitable for complex hierarchical access systems and bulk procurement by facility managers or OEM project integrators.

Packaging & Shipping

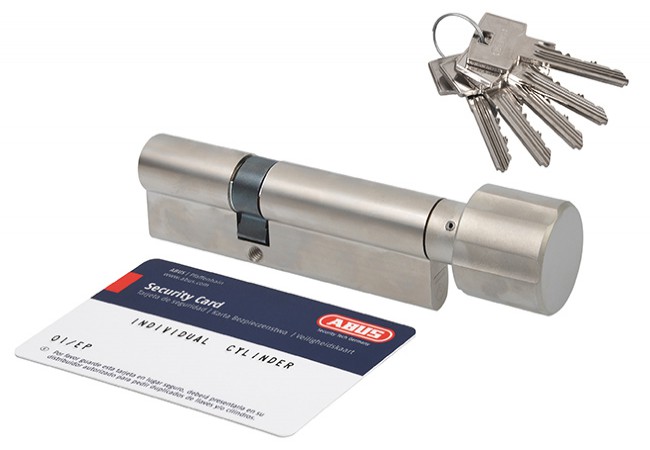

Each cylinder lock is supplied in a tamper-evident, sealed box including 5 dimple keys, a code card, a fixing screw, and mounting instructions. Standard export packaging ensures integrity during transport; bulk order solutions available for B2B customers.
