Abus Pfaffenhain Standard 45g/50 Euro Profile Cylinder Emergency Function Pearl Nickel EN 1303

Product Overview

Abus Pfaffenhain Standard 45g/50 cylinder insert with pearl nickel finish is a certified Euro profile lock cylinder designed for commercial and residential buildings requiring advanced security. Featuring emergency function clutch and compliance with the PN-EN 1303:2015-07 1 6 0 B 0 C 6 B standard, the cylinder is approved for use in fire-rated and smoke-control doors. The package includes five cut keys, a code card, and mounting hardware.

The emergency function clutch differentiates this model, enabling operation from one side even when a key is inserted from the other. This reduces access risk during emergencies or service scenarios, making the product particularly suited for specification projects in hotels, healthcare facilities, multi-dwelling units, and certified construction procurements.

Key Features

• Emergency function clutch ? enables cylinder rotation with a key inserted on both sides for emergency access


• Certified to PN-EN 1303:2015-07 1 6 0 B 0 C 6 B ? meets highest standards for security, fire/smoke door approval


• High key security ? class 6 (6 tumbler pins, 100,000 combinations) deters unauthorized access


• Corrosion and temperature resistance ? class C for demanding environments


• Anti-drill protection ? hardened steel pins (first and third), plus reinforced housing against drilling


• Paracentric key profile ? increased pick resistance and durable nickel silver material


• Master key system compatibility ? 14 mm core supports complex access control hierarchies

Technical Specifications

• Cylinder Length: 45g/50 mm


• Finish: Pearl Nickel


• Certification: PN-EN 1303:2015-07 1 6 0 B 0 C 6 B


• Key Security Class: 6


• Number of Pins: 6


• Combination Quantity: 100,000


• Drill Resistance Class: B (5/10 min per standard)


• Corrosion Resistance Class: C


• Core Diameter: 14 mm


• Number of Keys: 5 cut keys


• Key Material: Nickel Silver


• Fire Door Approval: Yes


• Smoke-Control Door Approval: Yes

Applications

Suitable for entrance doors in commercial, institutional, and residential buildings, including hotels, healthcare facilities, multi-dwelling units, schools, and office complexes. Certified for fire-rated and smoke-control doors according to PN-EN 1303, and compatible with master key systems for managed access control. Used in environments requiring high resistance to mechanical attacks and corrosion.

Packaging & Shipping

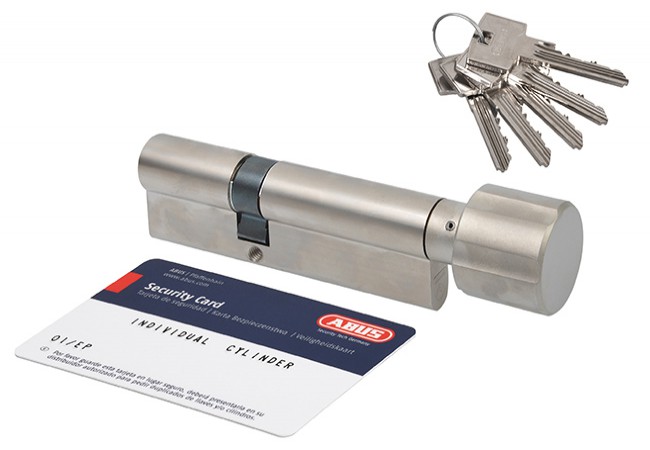

Each cylinder is packed in a sealed box with 5 cut keys, code card, mounting screw, and instruction manual. Tamper-proof packaging ensures product integrity for contract and bulk orders.
