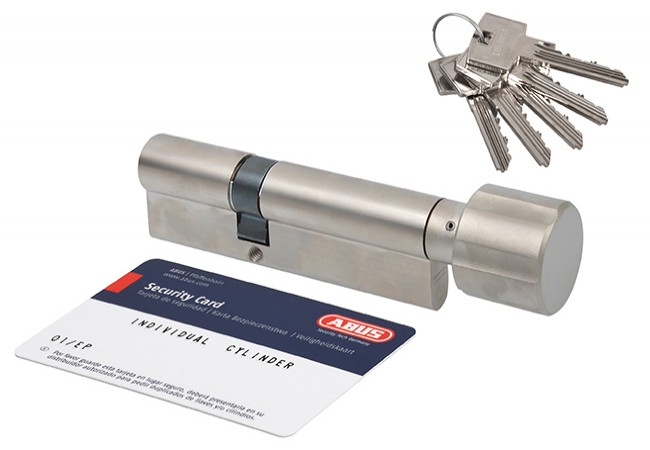

Abus Pfaffenhain Standard 50G/40 Euro Cylinder Nickel Pearl Emergency Function EN 1303 6.2C

Product Overview

Abus Pfaffenhain Standard 50g/40 nickel pearl cylinder with knob provides secure locking solutions for doors in residential and commercial buildings. Certified to PN-EN 1303:2015-07 and rated class 6.2 C, this cylinder meets high standards for key security (6 pins, 100,000 combinations), mechanical attack resistance, and corrosion. Approved for installation in fire-rated and smoke-control doors.

The emergency function (safe clutch mechanism) distinguishes this model, enabling operation of the cylinder even when keys are inserted simultaneously from both sides. This eliminates lockout risk and supports safety management in multi-user facilities. Recommended for bulk procurement in facility management, commercial fit-outs, and projects needing easy access control upgrades.

Key Features

• Emergency clutch function ? allows operation even with keys in both sides, preventing lockouts


• Certified security ? PN-EN 1303:2015-07, class 6.2 C, highest rating for key security and corrosion resistance


• Profiled anti-pick design ? multiple centering asymmetrical profiles protect against picking attempts


• Hardened steel pins ? first and third pins resist drilling attacks on cylinder core


• Case drilling protection ? additional features block core drilling


• Master key compatibility ? 14 mm core supports complex master key systems


• Durable, paracentric keys ? made from new silver alloy, withstands extended use

Technical Specifications

• Certification: PN-EN 1303:2015-07 1 6 0 B 0 C 6 B


• Security Class: 6 (6 pins, 100,000 combinations)


• Attack Resistance: Class B (5/10 min drilling resistance, mechanical attack, no plug extraction resistance)


• Corrosion Resistance: Class C (highest)


• Core Diameter: 14 mm


• Cylinder Length: 50 mm outer, 40 mm inner


• Finish: Nickel pearl


• Key Type: 5 cut keys included, paracentric profile


• Included Accessories: Code card, fixing screw


• Fire Door Approval: Yes


• Smoke Control Door Approval: Yes

Applications

Used in residential and commercial doors requiring high security and corrosion resistance, including apartment buildings, offices, and fire-rated/smoke-control door assemblies. Particularly suited for facility management, access control upgrades, and master key system installations. Meets security and fire safety standards for regulated environments.

Packaging & Shipping

Each cylinder is packaged in a sealed box with 5 cut keys, code card, fixing screw, and installation instructions. Export packaging ensures product integrity for bulk shipments.
