Abus Pfaffenhain Standard 55g/30 Euro Cylinder Nickel Drill Resistant EN 1303 Class 6

Product Overview

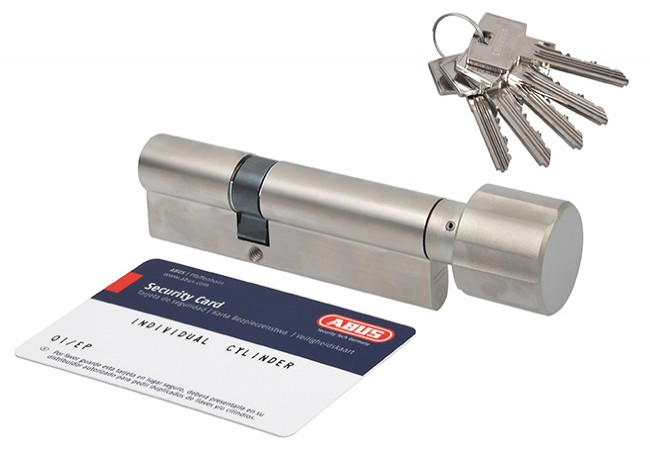

The Abus Pfaffenhain Standard 55g/30 nickel cylinder with thumbturn is a certified high-security euro profile lock component for commercial and residential doors, meeting PN-EN 1303:2015-07 1 6 0 B 0 C 6 B and fire/smoke door usage approval. Its secure coupling emergency function allows operation even when a key is inserted on both sides, making it suitable for managed buildings where access continuity is vital.

Hardened steel pins in the first and third chambers offer enhanced drill resistance, which distinguishes this cylinder from typical models. This protection minimizes risk to facility managers and property owners in scenarios vulnerable to forced entry attempts. It is particularly well-suited for bulk specification in premium real estate, institutional, or fire-rated door projects where certified security and operational reliability are required.

Key Features

• Secure coupling function ? cylinder can be operated from both sides even if a key is inserted, essential for emergency access


• 6-pin locking mechanism ? class 6 security with 100,000 key combinations for high resistance to picking


• Hardened steel pins ? first and third pins provide extra drill protection to core


• Corrosion and temperature resistance ? class C rating ensures longevity in harsh environments


• Approved for fire and smoke doors ? meets legal requirements for certified doors


• Nickel finish ? delivers lasting durability and discrete appearance


• Master key system capability ? 14 mm core enables complex access control hierarchies

Technical Specifications

• Cylinder Length: 55 mm/30 mm


• Material: Nickel plated


• Security Class: 6 (PN-EN 1303)


• Key Combinations: 100,000


• Core Diameter: 14 mm


• Certification: PN-EN 1303:2015-07 1 6 0 B 0 C 6 B


• Fire/Smoke Door Approval: Yes


• Drill Resistance: Hardened steel in 1st and 3rd pins


• Corrosion Resistance: Class C


• Number of Keys: 5 cut keys included

Applications

Used in entry, interior, fire-rated, and smoke-control doors for commercial offices, institutional buildings, healthcare facilities, apartments, and premium residential projects. Supports master key systems for access control and is certified for installation in fire and smoke partition doors. Suitable for environments requiring high security and continuity of access, including managed properties and OEM projects.

Packaging & Shipping

Each cylinder is individually sealed in tamper-evident packaging with 5 cut keys, code card, mounting screw, and manual. Packaging ensures full functionality and security for B2B buyers; bulk orders shipped in export cartons.
