Abus Pfaffenhain Standard Cylinder 35g/45 Thumbturn PN-EN 1303:2015 Class 6.2 C Nickel Pearl

Product Overview

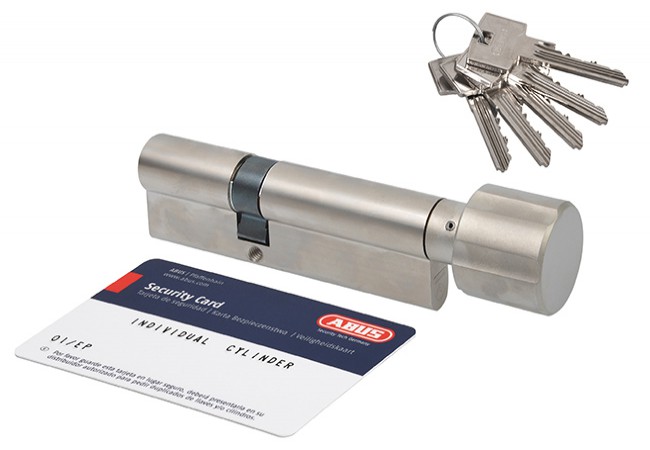

Abus Pfaffenhain Standard Cylinder 35g/45 Nickel Pearl with Thumbturn is rated to PN-EN 1303:2015 and features the highest security class 6.2 C, suitable for commercial and residential doors including fire-rated and smoke-control doors. The emergency clutch function ensures the cylinder operates even when keys are inserted from both sides, a critical feature for safety and access reliability in high-traffic or multi-user environments.

The hardened steel first and third pins differentiate this cylinder from standard models, delivering advanced protection against drilling attacks and offering compliance assurance for projects requiring elevated physical security. This unit is recommended for property managers, facility procurement teams, and OEM installations in environments demanding robust security and certified hardware, such as hotels, office buildings, and institutional properties.

Key Features

• Emergency clutch function ? allows unlocking when keys are inserted on both sides for improved access control


• PN-EN 1303:2015 certified ? meets rigorous European standards for security and operational safety


• Security class 6 ? 6 pins, 100,000 key combinations, highest key protection


• Hardened steel pins ? first and third pin plus core housing deliver enhanced anti-drill resistance


• Corrosion and temperature resistance ? class C certification for demanding conditions


• Master key system compatibility ? 14 mm core supports complex master key networking


• Paracentric key profile ? increases pick resistance, suitable for high security applications

Technical Specifications

• Length: 35g/45 mm


• Material: Nickel pearl finish, new silver keys


• Security Class: 6.2 C (PN-EN 1303:2015)


• Key Combinations: 100,000


• Number of Pins: 6


• Certification: PN-EN 1303:2015


• Drill Resistance: Hardened first and third pin, anti-drill core housing


• Fire and Smoke Door Approval: Yes


• Core Diameter: 14 mm


• Included Keys: 5 cut keys


• Resistance Class: B (drilling/mechanical attack)


• Corrosion and Temperature Resistance: Class C

Applications

Designed for use in fire-rated doors, smoke-control doors, and high-security commercial and residential entrances. Particularly suited for property management, OEM door assemblies requiring certified locking hardware, hotels, office buildings, and institutional facilities demanding master keying and advanced physical security.

Packaging & Shipping

Each cylinder is packaged in a sealed box to ensure tamper-evident delivery. Package includes the cylinder, 5 cut keys, code card, mounting screw, and installation accessories.
